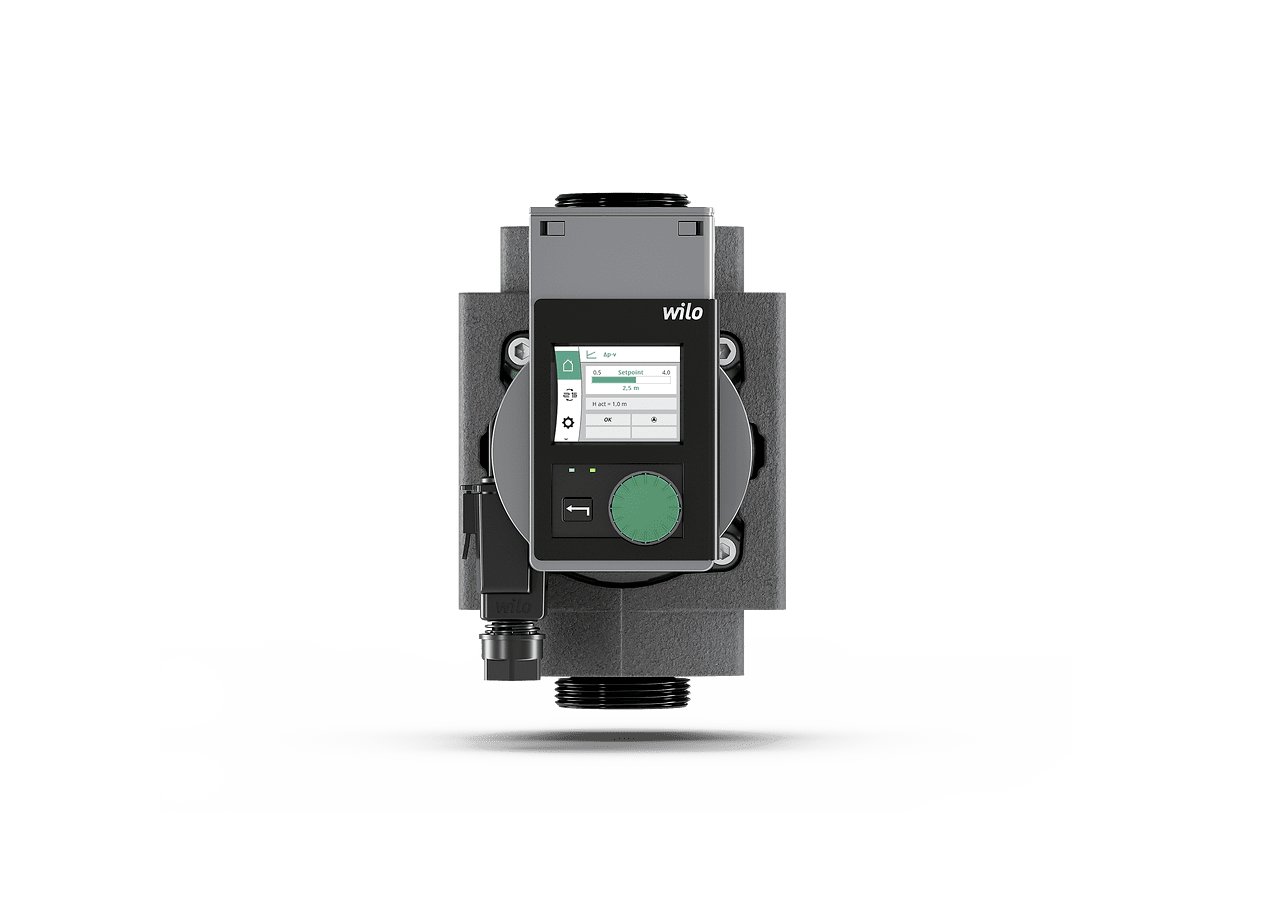

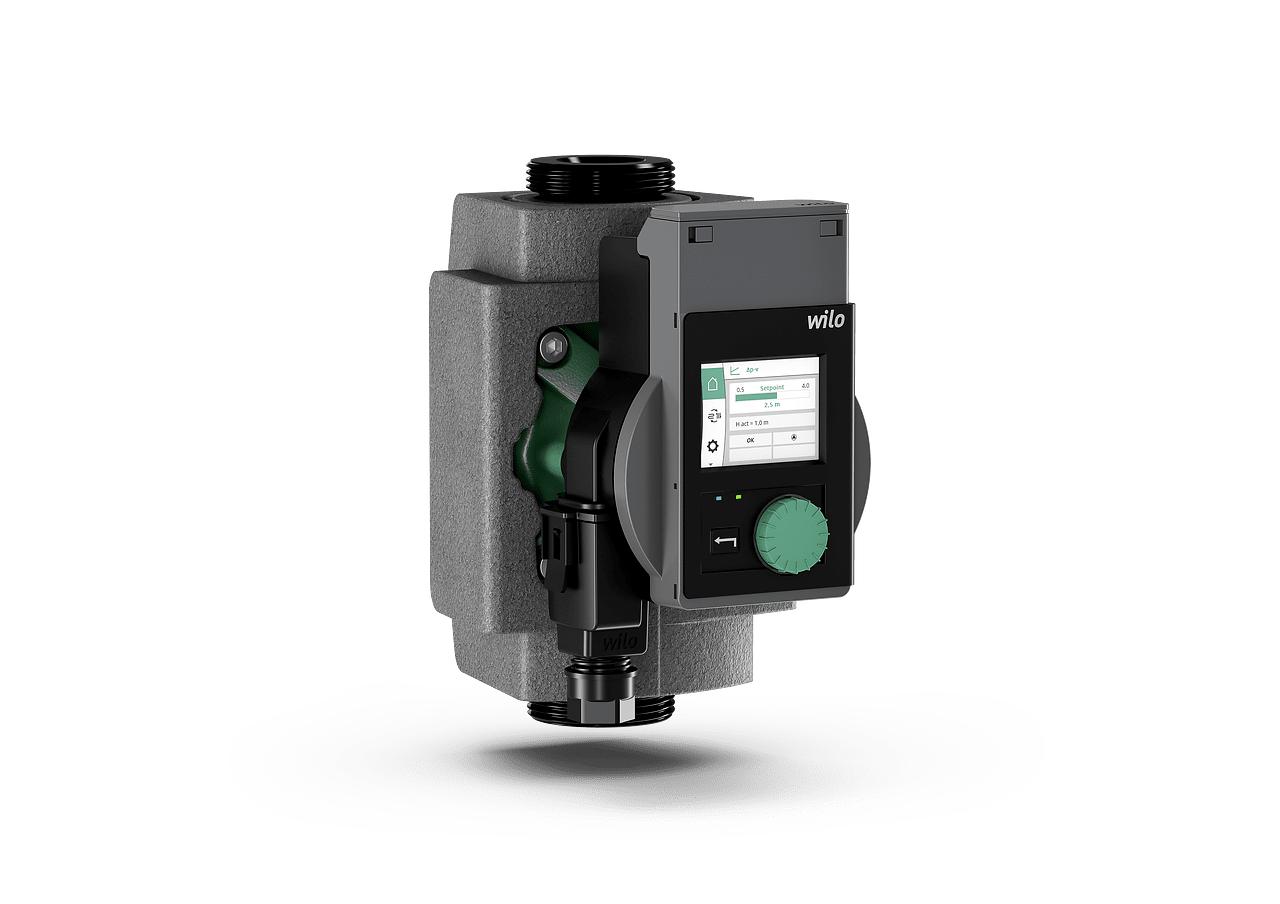

The Wilo Stratos PICO circulation pump is part of a range of highly efficient pumps. The pump is used in all standard heating systems, air conditioning units, and industrial circulation systems. Its primary purpose is for single-family homes and semi-detached houses. The pump allows for both manual and automatic operation (see below). Energy consumption is up to 90% lower compared to older pump types (Star-RS, etc.).

The pump meets Erp requirements.

BT Version (Bluetooth)

The Wilo Stratos PICO BT version is equipped with wireless communication via Bluetooth. This allows the pump to be conveniently set up, monitored, and managed using the Wilo-Assistant mobile app. This facilitates commissioning, operation optimization, and servicing without the need for physical access to the pump's control panel.

Characteristics

Automatic Functions

• Smooth performance adjustment depending on the operating mode
• Automatic setback mode
• Automatic rotor space venting function
• Automatic unblocking
• Dry-run protection

Manual Functions

• Setting the operating mode
• Setting the pump performance
• Setting automatic start-up operation
• Setting automatic operation for pressure-independent valves
• Venting the pump
• Manual restart
• Reset function to zero the electricity meter or to restore factory default settings
• "Hold" function - button lock

Pump Features

• Quick electrical connection thanks to the WILO connector
• Automatic venting
• Particle filter
• Motor resistant to blocking
• Power consumption indication in W
• Cumulative kWh indication
• Display of fault codes

Delivery Contents

• Pump
• Thermal insulation
• WILO connector for faster power connection
• Seals
• Installation and operating instructions
