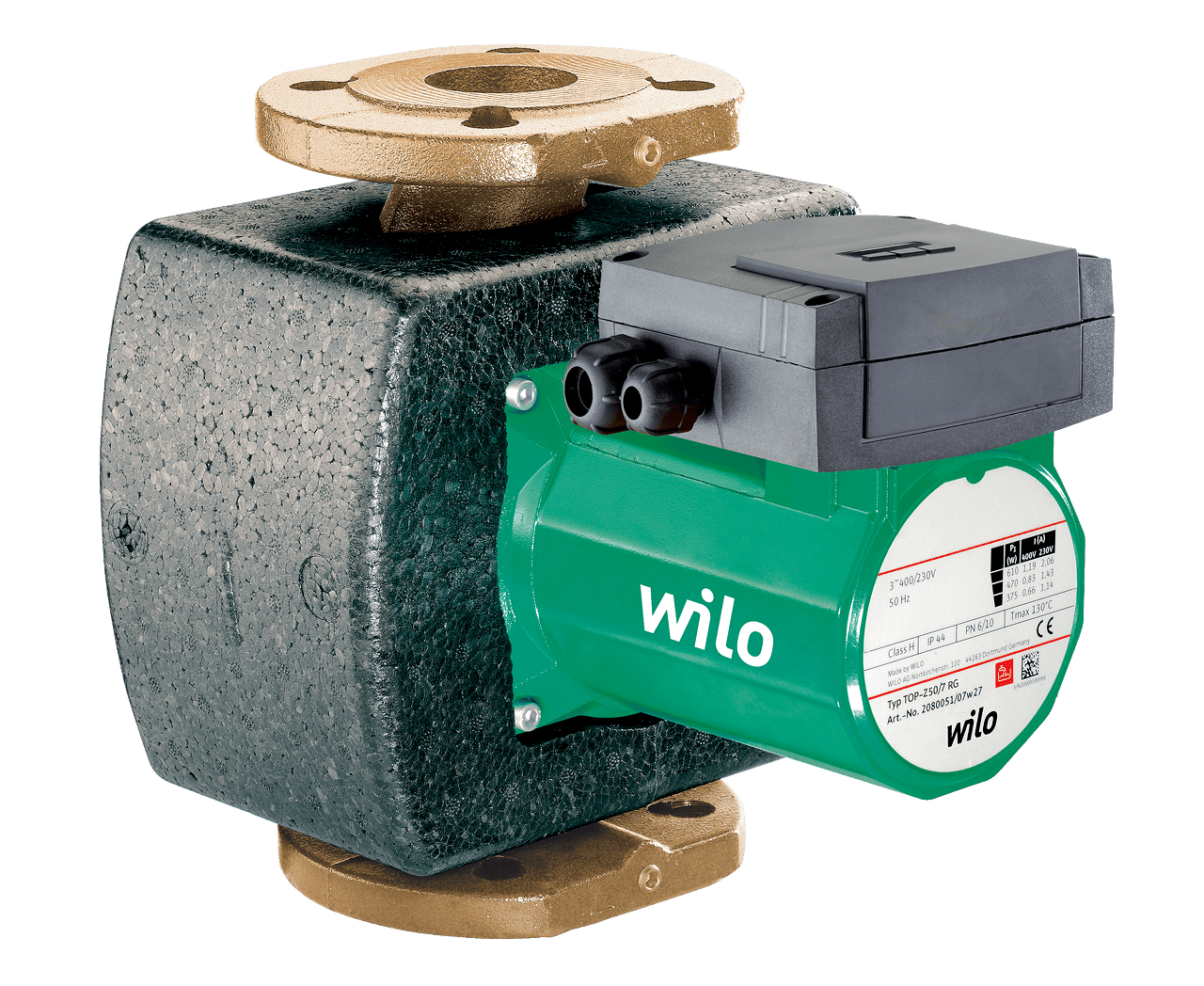

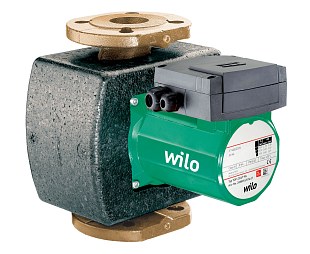

Electronic Circulating Pump Wilo TOP-Z 80/10 DM PN6 (2175532)

Electronic Circulating Pump Wilo TOP-Z 80/10 DM PN6 (2175532)

Electronic Circulating Pump Wilo TOP-Z 80/10 DM PN6 (2175532)

WILO
  • Product code: 2175532
  • EAN : 4048482742861
  • Manufacturer code: 2175532
  • Warranty: 2 years

Electronic circulation pump Wilo TOP-Z 80/10 DM 400V PN6. Suitable for potable water circulation. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 7 842,01
Price excluding VAT € 3 240,50
Price with VAT 21 % € 3 921,01
− +

Trustpilot

Parameters and catalogs

Building length 360 mm
Connection Type Flange
Liquid temperature 0...80 °C
Power Supply 400 VAC
Pressure PN 6
Pump bore DN 80
Pump connection size DN 80
Pump flow rate 67.2 m3/h
Pump head 10 m
Weight 34.50 kg

Data sheet download

Download PDF

Wet-running circulation pump WILO TOP-Z series for drinking water systems.

Application

Drinking water systems in industry or technical building equipment. The TOP-Z pump is exclusively intended for drinking water.

Characteristics

Wilo TOP-Z 80/10 characteristics

Features

  • Supplied as standard with thermal insulation.
  • Performance adjustment using three speed levels.

Materials

  • Pump casing made of stainless steel/red bronze and grey cast iron.
  • Impeller made of plastic.
  • Shaft made of stainless steel/ceramic.
  • Bearing made of carbon, impregnated with synthetic resin.

Scope of Delivery

  • Pump.
  • Thermal insulation.
  • Seals.
  • Installation and operating instructions.
