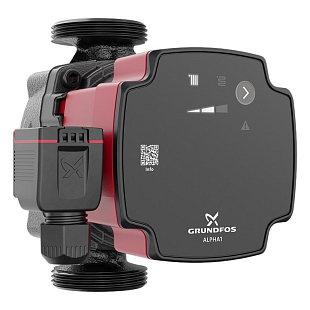

Electronic circulation pump Grundfos ALPHA1 25-60 130 (93074164)

Electronic circulation pump Grundfos ALPHA1 25-60 130 (93074164)

Electronic circulation pump Grundfos ALPHA1 25-60 130 (93074164)

GRUNDFOS
  • Product code: 93074164
  • EAN : 5715467403909
  • Manufacturer code: 93074164
  • Warranty: 2 years

The Grundfos ALPHA1 is an energy-efficient, quiet, and reliable circulation pump suitable for heating systems. It offers easy installation and intelligent performance regulation. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 11,12
    BPost - PP (Pick-up Point):
    3.1 workdays € 10,39
    FedEx Priority:
    1.7 workdays € 17,18
    DHL Express:
    1.1 workdays € 22,99

    DHL Express: 1.1 workdays, € 22,99

  • More than 5 pcs in stock

List price € 284,35
Price excluding VAT € 115,15
Price with VAT 21 % € 139,33
− +

Trustpilot

Parameters and catalogs

Building length 130 mm
Connection Type External thread
Liquid temperature -10...110 °C
Power Supply 230 VAC
Pressure 10 bar
Pump bore DN 25
Pump connection size 1 1/2"
Pump flow rate 3.6 m3/h
Pump head 6 m
Weight 2.05 kg

Catalog sheet download

Download PDF

Technical catalog download

Download PDF

Assembly instructions download

Download PDF

Grundfos ALPHA1 is an intelligent and energy-efficient circulation pump designed for heating systems and hot water circulation. It is based on the proven ALPHA2 platform and combines modern technology, advanced features, and intuitive control with an affordable price. This makes it highly reliable, flexible, and easy to install. It is an ideal replacement for older pumps (e.g., UPS) and a suitable choice for new installations. It is suitable for both single and twin-pipe systems, radiator heating, and underfloor heating.

Construction

Construction

  • Permanent magnets and compact motor
  • Self-venting body
  • Available in cast iron and stainless steel variants
  • ALPHA connector for quick electrical installation
Functions

Functions

  • Modes: proportional, constant pressure, and 3 speed levels
  • Display showing current consumption (W)
  • Automatic protection against blockage and overload
  • EEI ≤ 0.20 – high energy efficiency
Usage

Usage

  • Single and twin-pipe heating circuits
  • Underfloor heating
  • Hot water circulation (N variant – stainless steel)
  • Replacement of older UPS pumps

Can be used for:

The ALPHA1 series is suitable for both standard and more demanding applications. It can be used in family homes, residential units, and smaller commercial properties.

Easy control with a single button allows you to select the optimal operating mode. The integrated display provides instant feedback on current energy consumption.

Installation is quick and hassle-free thanks to its compact dimensions and ALPHA electrical connector. Available in construction lengths of 130 or 180 mm, with G1, G1½, or G2 threads depending on the type.

Type key for variants:

Example: ALPHA1 25-40 180 N

  • ALPHA1 – Product line designation
  • 25 – Nominal diameter (DN) of the suction and discharge port in mm (DN25)
  • 40 – Maximum head in dm (i.e., 4 metres)
  • 180 – Construction length in mm
  • N – Pump body
    • [ ] (Empty) – Cast iron body (standard version for general use)
    • A – Body with air separator (for applications with air in the liquid, e.g., heating systems)
    • N – Stainless steel body (suitable for drinking water and domestic hot water – DHW)

Individual models differ in performance, material, and length. For selecting a specific variant, we recommend following the system parameters and installation requirements.
