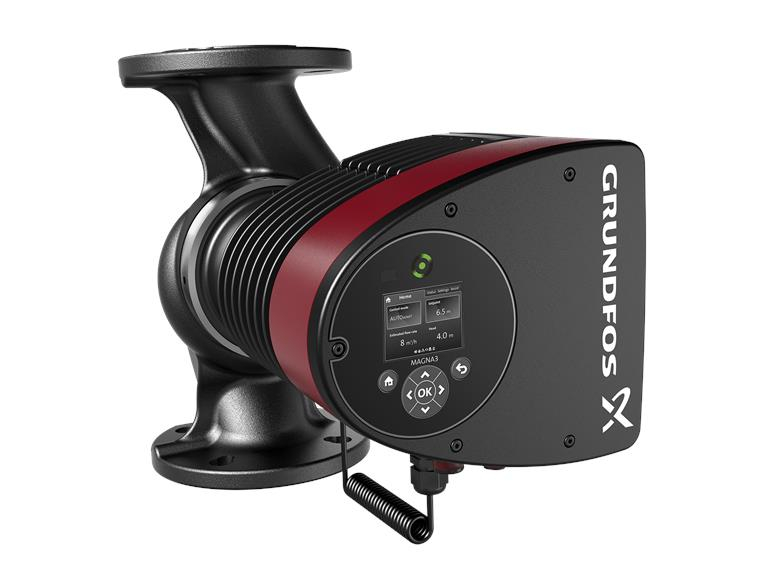

It is designed for pumping water in heating, cooling, and air conditioning systems. It features high efficiency, reliability, and easy installation. Thanks to intelligent control and robust materials, it is suitable for a wide range of applications, including potable water. It can be controlled via an external signal (0-10 V, 4-20 mA). Easy integration into MaR and BMS systems using CIM modules.

Thanks to the AUTOADAPT function, the pump analyses the heating system's requirements and responds to changes by adjusting its performance. The pump reacts to every change in conditions by altering its operating point. This function ensures optimal comfort along with energy savings.

The FLOWLIMIT function allows setting a maximum flow limit. The pump continuously monitors the flow rate of the liquid and ensures that the required flow is not exceeded under stable operating conditions. This contributes to the balance of the entire system and reduces the need for balancing valves.

The FLOWADAPT function is a combination of the above functions. It allows for further energy savings.

Technical Data

• Nominal flow rate: 5.53 m³/h
• Maximum head: 7.4 m
• Body material: Stainless steel (EN 1.4308)
• Liquid temperature range: -10...110 °C
• Maximum operating pressure: 10 bar

Electrical Parameters

• Maximum power input: 182 W
• Power supply: 1 x 230 V, 50/60 Hz
• Maximum current: 1.56 A
• Energy Efficiency Index (EEI): 0.18

This pump is certified for potable water and meets CE, VDE, EAC standards and other approvals, including WRAS, ACS, and UBA.
