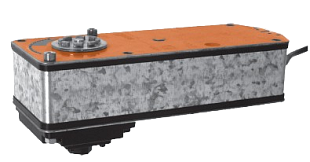

Spring actuator designed for controlling dampers in air handling systems. In the event of a power failure, it automatically returns to a safe position. The AF230-S model is additionally equipped with an auxiliary switch with adjustable signal angles.

Main Features

• Power Supply: AC 230 V
• Double auxiliary switch on the AF230-S model (signal at 5% and 26–89%)
• Minimum torque: 15 Nm
• Adjustable rotation angle up to 95°

Specifications

• Lifespan: min. 60,000 cycles
• Noise level: motor max. 45 dB, spring approx. 62 dB
• Protection: IP54, class II
• Operating temperature: -30 °C to +50 °C

Installation is easy thanks to the WD6 mounting set on the damper flange. The damper can be manually adjusted to the desired position.
