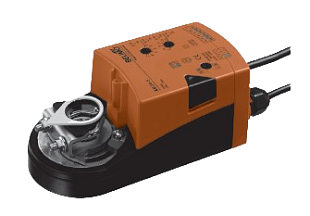

Actuator designed for controlling dampers in HVAC systems, supporting manual adjustment and reliable damper control. Its construction ensures high functional safety, easy installation, and operational flexibility.

Main Features

• Power Supply: AC 24 V, 50/60 Hz or DC 24 V
• Minimum Torque: 18 Nm
• Rotation Angle: max. 95°
• Adjustable mechanical stops for precise angle setting

Technical Specifications

• Power Consumption: 2.5 W
• Noise Level: max. 45 dB
• Protection: IP54
• Operating Temperature: -30 °C to +50 °C
• Lifespan: min. 60,000 cycles

The AM24 is suitable for direct mounting on dampers with the WD6 mounting kit. The actuator can also be manually operated using a button and connected directly via cables or terminals.
