We offer an assembly service for the actuator with fittings for this product. More information

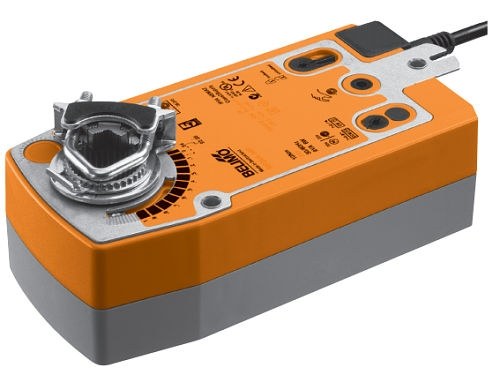

Emergency Belimo NF series actuator for HVAC dampers or ball valves (e.g. Giacomini R250D with adapter). The actuator is designed for damper sizes up to approx. 2m2. The actuator control can be programmed either for 3-point (factory setting) or continuous DC 0-10V.

Function

In the event of a power interruption, the return spring begins to rotate the actuator to its default position. For example, in the event of a power failure, it closes the damper or ball valve. The same can be achieved in reverse, depending only on the initial position of the damper.

• The actuator can be operated manually using the locking button and manual crank.

Features

• The actuator is protected against overload, no end stops are necessary.
• Simple installation on the damper shaft using a universal bracket.
• Adjustable working angle with mechanical stop.
• The actuator can be equipped with auxiliary switching contacts S...A or a feedback potentiometer.
