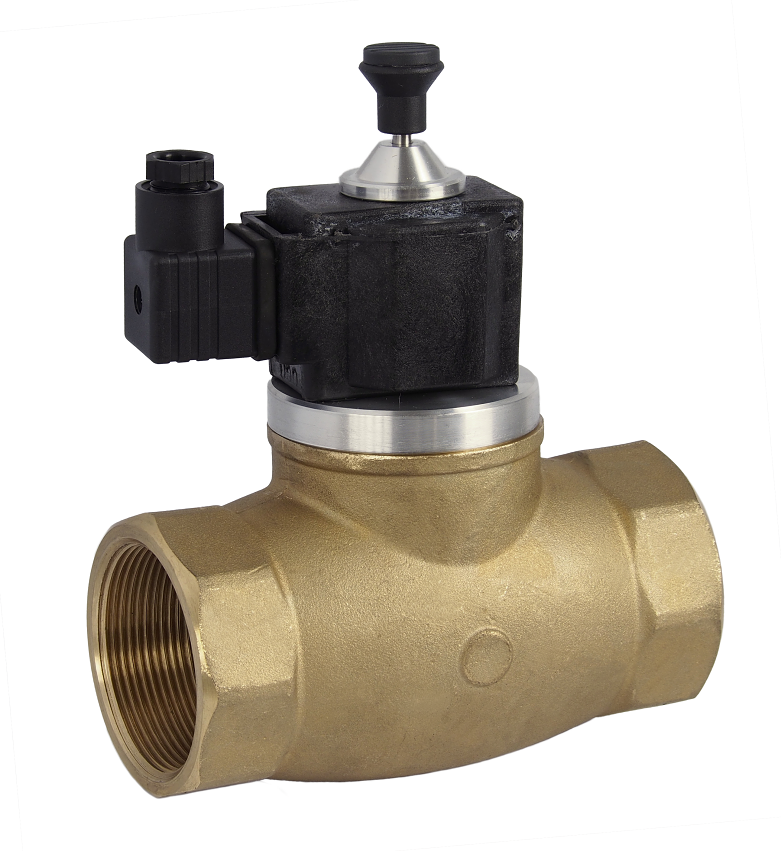

Emergency solenoid valve designed for gaseous fuels with manual control option. It is used for shutting off low-pressure (5 kPa) or medium-pressure (400 kPa) gas pipeline systems. The valve is designed for manual opening (pulling the valve rod) and electromagnetic closing with an electric impulse. We recommend using dirt filters before the valve.

Features:

• two-way emergency valve
• normally open (NO)
• DN 20 / internal thread
• operating overpressure 0-400 kPa
• suitable for gaseous fuels including propane-butane
• medium temperature max. 80 °C
• switching time max. 1s
• protection rating IP 52

The valve is supplied including a power coil and connector.
