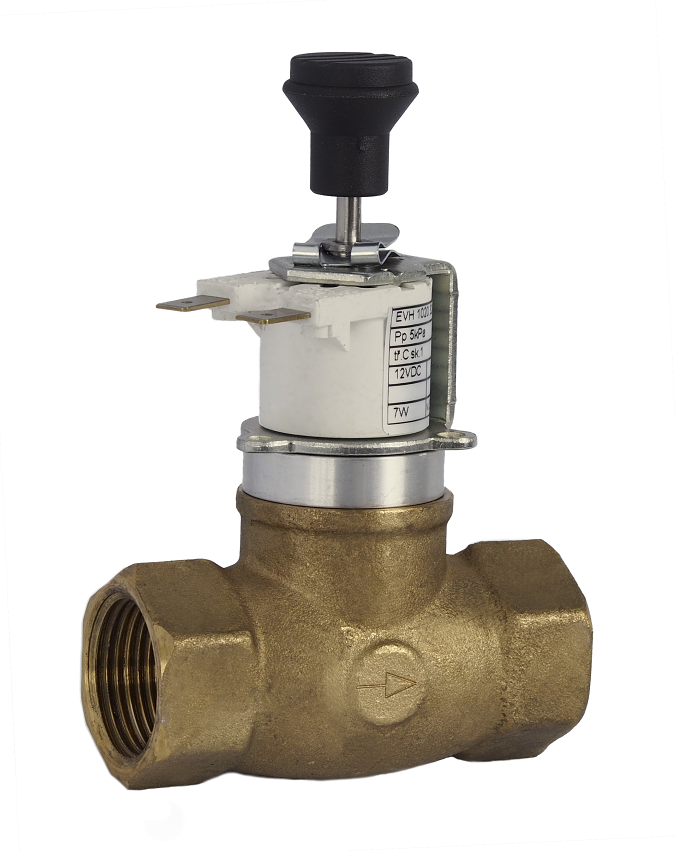

Emergency Solenoid Gas Valve PEVEKO EVH 1025.32/L

  • 2 variants

Emergency Solenoid Gas Valve PEVEKO EVH 1025.32/L

PEVEKO
  • Product code: 5576.32
  • Manufacturer code: EVH 1025.*2/L
  • Warranty: 2 years

Emergency solenoid gas valve PEVEKO series EVH More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 151,71
Price with VAT 21 % € 183,57

Product variants

+

Parameters and catalogs

Atex No
Connection size 1"
Connection Type Internal thread
Function Normally open
Gasket NBR
IP Rating IP 00
Medium DN 13
Medium Temperature 80 °C
Nominal diameter DN 25
Power Supply 12 VDC
Pressure Low pressure
Weight 0.60 kg

Datasheet download

Download PDF

The emergency solenoid valves of the EVH series are designed for closing medium-pressure and low-pressure pipeline systems with manual opening. Closing is performed via an electrical impulse, with the coil being de-energized in the operational state. However, it can also be closed manually.

Features

  • any installation position
  • body made of high-quality brass and internal parts made of stainless steel
  • easy manual opening and closing possible
