ESBE ARA694M Actuator 24 V (12101000)

ESBE ARA694M Actuator 24 V (12101000)

Product code: 12101000
EAN : 7330193035897
Manufacturer code: 12101000
Warranty: 2 years

Actuator for mixing valves ESBE ARA694M. Power supply 24V, 3-point, running time 120/240/480/1200. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Auxiliary contact	0...5 mbar
Control	3"
Damper size	DN 50
Emergency function	0...25 mbar
Power Supply	24 VAC
Setup time	480 s, 240 s, 1200 s, 120 s
Torque	6 Nm
Weight	0.61 kg

Datasheet download

Download PDF

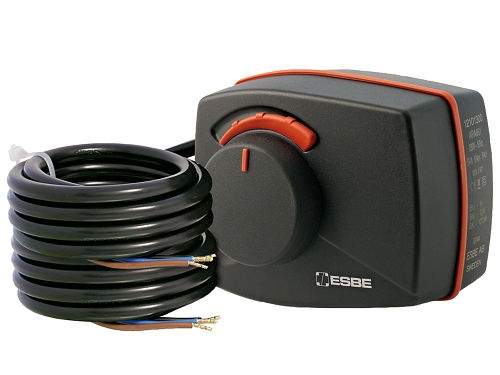

The ARA600 series actuator is designed for motorizing ESBE rotary mixing valves with dimensions DN 15-50. The actuator has an operational angle of 90° and the valve can be manually operated if necessary, thanks to the pull-out knob on the front of the actuator. The actuator is further equipped with a power cable that is 1.5m long.

The actuator is supplied including a mounting kit for ESBE VRG valves.
