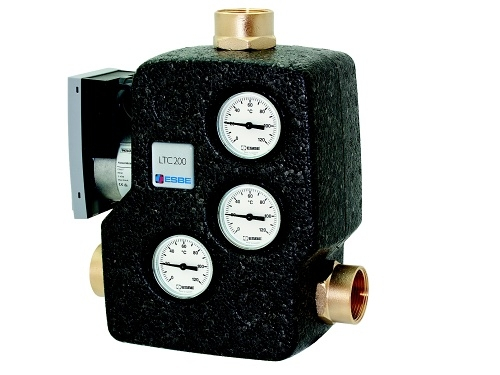

Filling Unit ESBE LTC 271 40/65 (55007400)

Filling Unit ESBE LTC 271 40/65 (55007400)

Filling Unit ESBE LTC 271 40/65 (55007400)

ESBE
  • Product code: 55007400
  • EAN : 7330193047647
  • Manufacturer code: 55007400
  • Warranty: 2 years

Filling unit with energy-saving pump. Dimension DN40. Opening temperature 65 °C. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Connection size DN 40
Connection Type Internal thread
Material Brass
Opening Temperature 65 °C
Power Supply 230 VAC
Pump performance 80 kW
Weight 4.54 kg

Datasheet download

Download PDF

The LTC200 series filling unit is designed to ensure and maintain a high return water temperature to the boiler. This parameter contributes to extending the boiler's lifespan, reduces tar formation, and increases the boiler's efficiency.

The unit is already equipped with a highly efficient and economical pump that complies with the EU directive on energy-related products (ErP).

Features

  • Power supply 230 VAC, 50 Hz
  • Energy class A
  • Body and valve cover made of ductile iron EN-JS 1050
  • Medium temperature max. 0...110 °C
  • Leakage A - AB max. 0.5% of maximum flow (Qmax)
  • Leakage B - AB max. 3% of maximum flow (Qmax)
  • Pressure class PN 6
  • Built-in venting function
