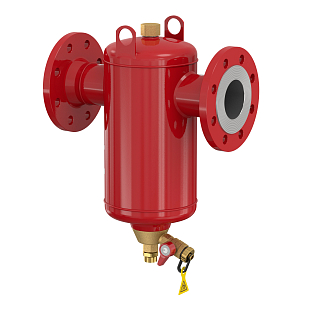

Flamco Clean Smart 125 F Dirt Separator (31026)

The Flamco Clean Smart 125 F dirt separator is a highly efficient device for removing microscopic impurities from water systems. Compared to standard separators, it achieves up to 60% higher efficiency with minimized flow resistance. It is designed for use in systems with an operating pressure of up to 10 bar and a temperature of up to 110 °C.

Key Features:

• High Efficiency – 60% better dirt separation compared to conventional separators.
• Magnetic Filtration – contains 25 neodymium magnets with a magnetic induction of 1.3 T.
• Easy Maintenance – integrated scraper for removing deposited impurities.
• Wide Compatibility – suitable for water mixtures with glycol (up to 50%) or ethanol (up to 30%).
• Standardized Connection – flange according to EN 1092-1 PN16, DN 125.

Technical Specifications:

• Capacity: 59 l
• Connection: DN 125
• Dimensions:
  • Pipe Diameter: 139.7 mm
  • Height: 790 mm
  • Width: 635 mm
  • Depth: 219 mm
  • Distance Between Flanges: 360 mm
• Weight: 48 kg
• Flow Coefficient Kv: 459 m³/h (at ΔP = 1 bar)
• Order Number: 31026

The separator is designed in accordance with the Pressure Equipment Directive 2014/68/EU and is the ideal solution for ensuring water cleanliness in heating and cooling systems.
