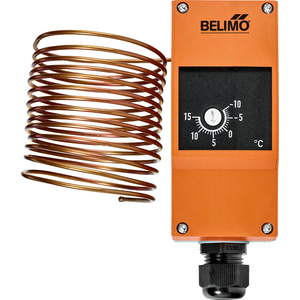

The Belimo 01ATS-105XC frost protection thermostat is designed for monitoring the temperature of water or air heaters. It is used to control the temperature in ventilation and air conditioning applications where freezing may occur. When the limit temperature is reached, a safety switch is activated. The limit temperature is set using a control wheel on the housing with a scale ranging from -10 to 15 °C. After activation, the thermostat must be manually reset once the temperature increases.

Features

• easy installation
• switching output signal
• maximum ambient humidity 85%
• measurement range -10 to 15 °C
• capillary length 6 m
• manual reset
• operating temperature -20 to 80 °C
• continuous valve control DC 0 to 10 V
• mounting flange A-22D-A08
