Threaded gas filter for the protection of valves, regulators, and gas meters – captures mechanical impurities and enhances the reliability of gas distribution. More information
Out of stock - can be requested
| Connection size | Rp 1", Rp 1 1/2" |
| Connection Type | Internal thread |
| Medium | Dry gases |
| Mesh fineness | 50 µm, 20 µm, 10 µm |
| Nominal diameter | DN 40 |
| Pressure | 6 bar |
| Temperature | -40...70 °C |
| Weight | 0.00 kg |

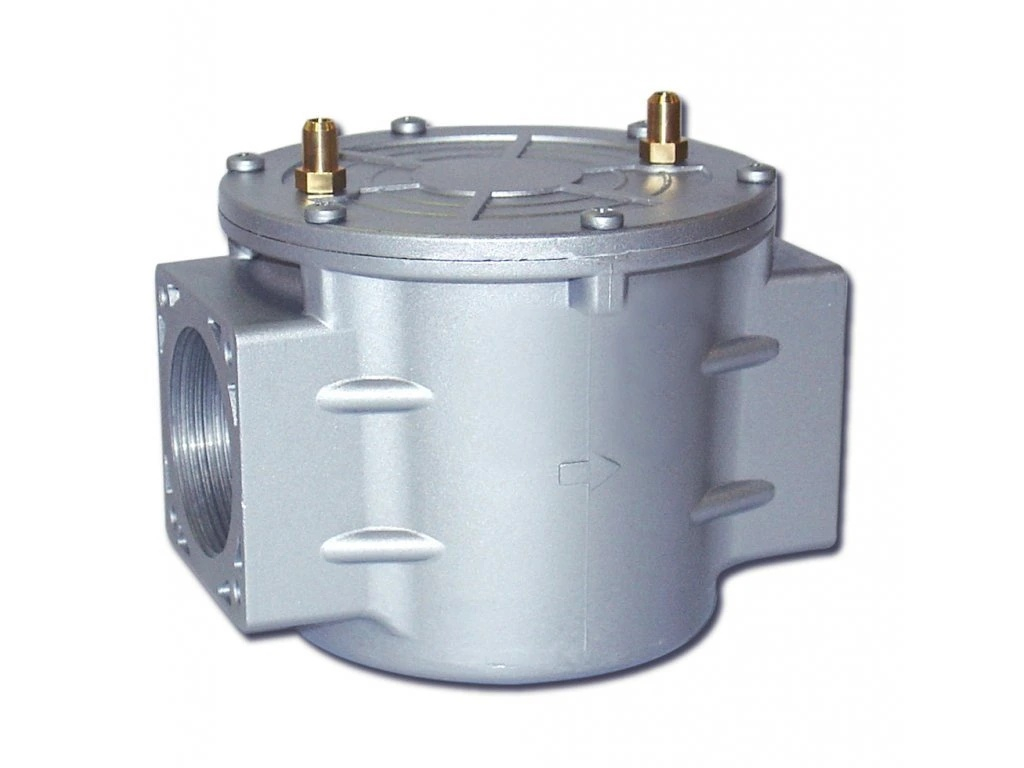

The PEVEKO PFZ M gas filter is designed for filtering gaseous fuels in gas pipelines. It serves to remove mechanical impurities from the gas, thereby extending the lifespan and increasing the reliability of subsequent fittings and equipment. The filter is typically installed before gas valves, gas meters, and pressure regulators, or before burners and appliances using gaseous fuels. The Rp 1 1/2" (DN 40) variant is suitable for compact threaded installations.
| Dimension (DN) | DN 40 |
| Connection | Rp 1 1/2" (internal thread, according to EN 10226) |
| Pressure Range | PN16 |
| Max. Working Pressure | 6 bar (600 kPa) |
| Ambient Temperature | –40...70 °C |
| Filtration Level | Standard: 10 µm (on request 20 / 50 µm) |
| Media | Non-aggressive gases (dry gases), biogas (on request) |
| Mechanical Strength | Group 2 (according to EN 13611) |
