Compact threaded gas filter for the protection of valves, gas meters, and pressure regulators – captures impurities and enhances operational reliability. More information
Out of stock - can be requested
| Connection size | Rp 1 1/4" |
| Connection Type | Internal thread |
| Medium | Dry gases |
| Mesh fineness | 50 µm, 20 µm, 10 µm |
| Nominal diameter | DN 32 |
| Pressure | 6 bar |
| Temperature | -40...70 °C |
| Weight | 0.00 kg |

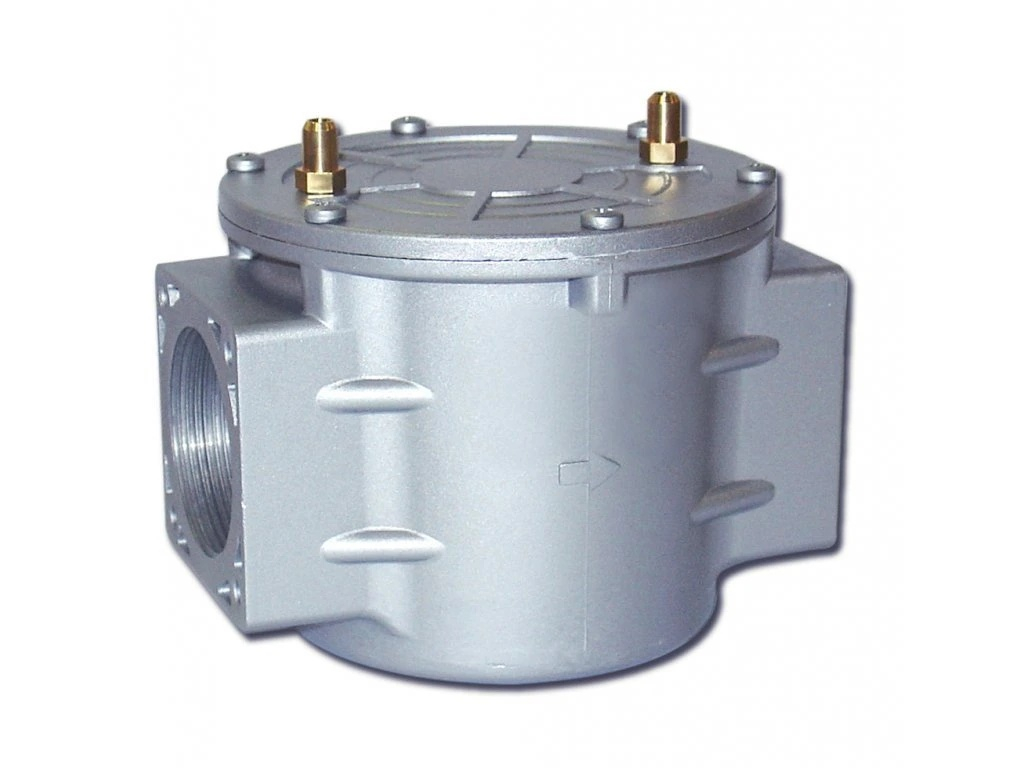

The PEVEKO PFZ M gas filter is a threaded design intended for filtering gaseous fuels in gas pipelines. It helps remove impurities from the gas flow, thereby extending the lifespan of subsequent installation components. The filter is particularly suitable for installation before gas valves, gas meters, pressure regulators, and gas burners, where it reduces particle deposition and contributes to stable and safe operation.
| Max. operating pressure | 6 bar (600 kPa) |
| Filtration grade | Standard: 10 µm (on request 20 / 50 µm) |
| Ambient temperature | -40...70 °C |
| Medium | Non-aggressive gases (dry gases), biogas (on request) |
| Connection | Threaded according to EN 10226 – Rp 1 1/4" |
| Mechanical strength | Group 2 (according to EN 13611) |
