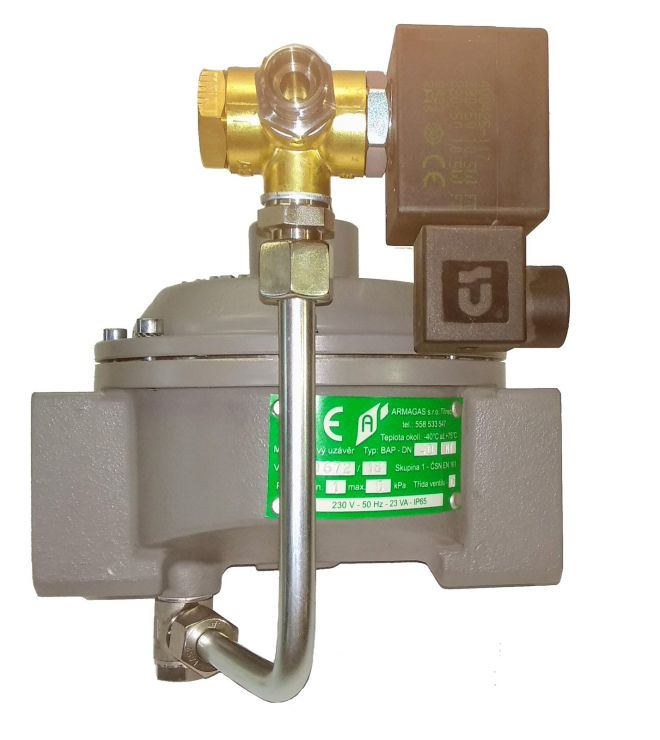

Two-way diaphragm gas shut-off valve Armagas BAP DN 40 ST solo R. It is primarily designed as a safety shut-off for controlling the flow of gaseous media through piping (heating and other non-aggressive gases). Its most common use is in front of a boiler, as an emergency shut-off or as dual shut-offs for gas burners.

The Armagas BAP DN 40 valve is indirect (the diaphragm is not directly controlled by the coil, but by the pressure of the flowing gas), direct (it has two positions - open x closed) valve suitable for non-explosive environments. It is closed when not powered. According to EN 30, this valve cannot be used as an automatic shut-off valve for cooking appliances.

It can only be installed horizontally and at least 15 cm from the ceiling. Ventilation above the valve is also recommended, as there is a possibility of gas leakage above the diaphragm during switching on/off. This condition lasts a maximum of 1 second.

Features

• power supply 24 VAC
• closed when not powered
• two positions - open/closed
• horizontal installation (min. 15 cm from the ceiling)
• operating overpressure ST 5-50 kPa
• connection size Rp 1 1/2", DN 40
• placement of control valves on the right in the direction of gas flow
• non-explosive environment
