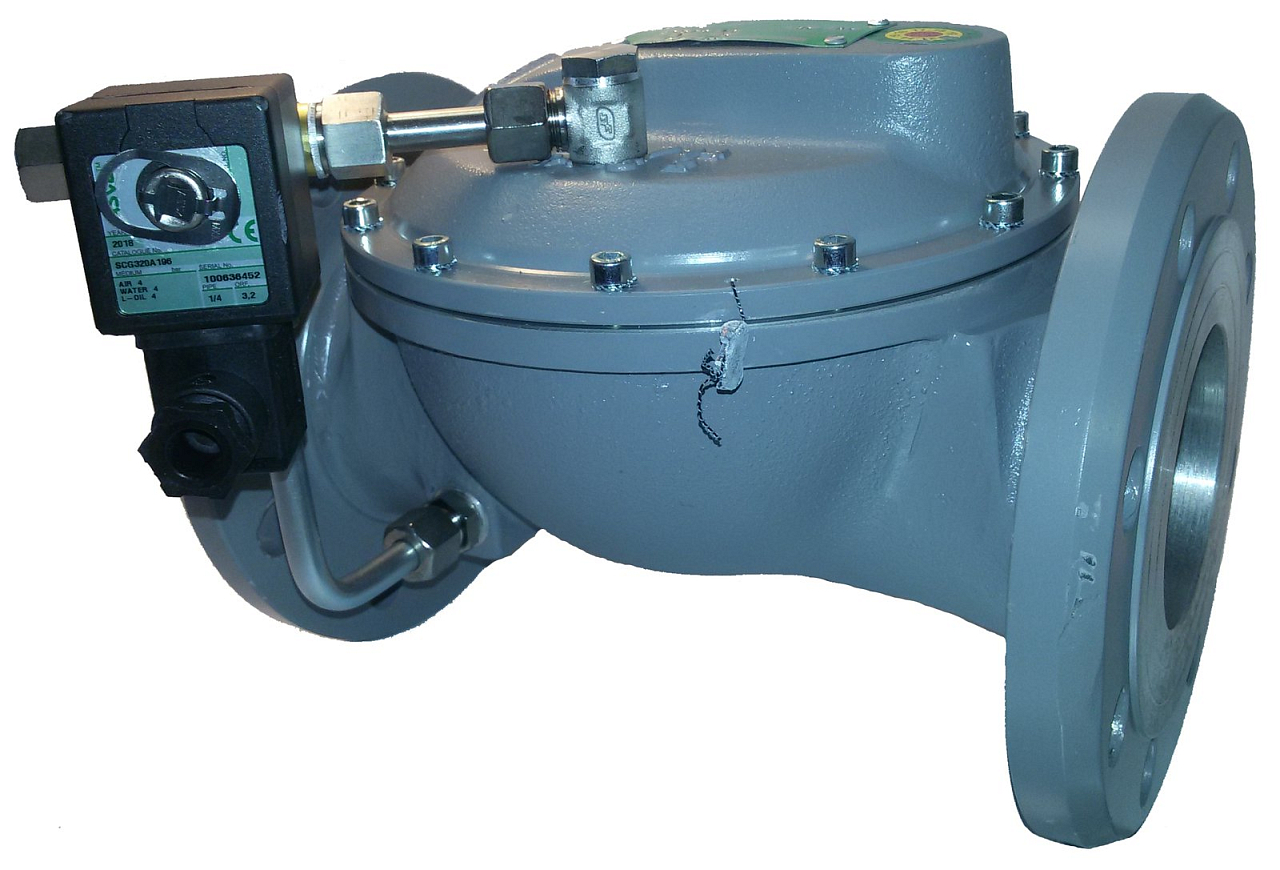

Two-way diaphragm gas shut-off valve Armagas BAP DN 80 NT solo R. It is primarily designed as a safety shut-off for controlling the flow of gaseous media through piping (heating and other non-aggressive gases). Its most common use is in front of a boiler, as an emergency shut-off or as double shut-offs for gas burners.

The Armagas BAP DN 80 valve is an indirect (the diaphragm is not directly controlled by a coil, but by the pressure of the flowing gas), direct (it has two positions - open x closed) valve suitable for non-explosive environments. It is closed without power. According to EN 30, this valve cannot be used as an automatic shut-off valve for cooking appliances.

It can only be mounted horizontally and at least 15 cm from the ceiling. Ventilation above the valve is also recommended, as there is a possibility of gas leakage above the diaphragm during switching on/off. This condition lasts a maximum of 1 second.

Features

• power supply 24 VDC
• closed without power
• two positions - open/closed
• horizontal installation (min. 15 cm from the ceiling)
• operating overpressure NT 1-5 kPa
• connection size DN 80
• control valves located on the right in the direction of gas flow
• non-explosive environment
