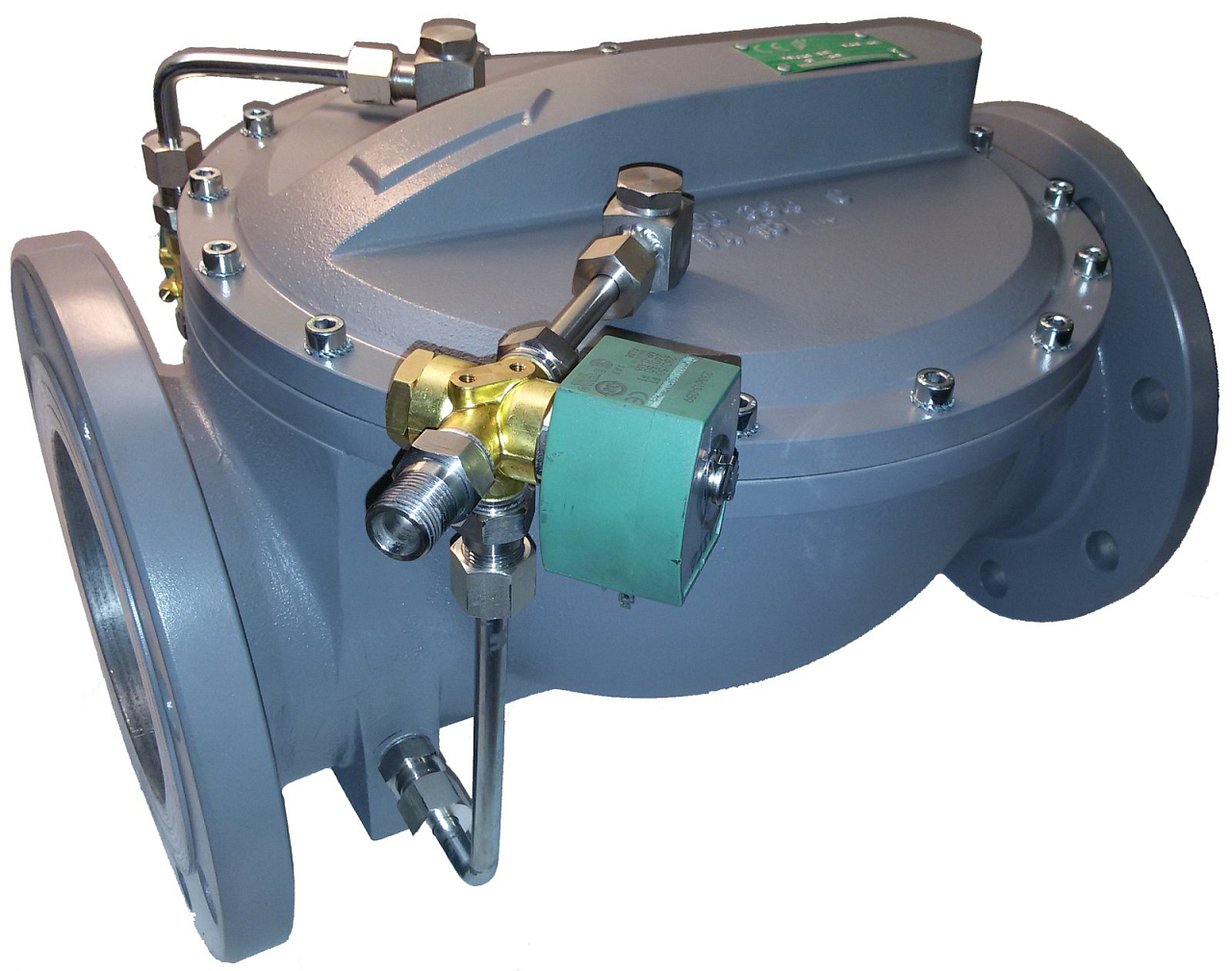

Two-way diaphragm gas shut-off valve Armagas BAP DN 150 NT solo R. It is primarily designed as a safety shut-off for controlling the flow of gaseous media through piping (heating and other non-aggressive gases). Its most common use is in front of a boiler, as an emergency shut-off or as double shut-offs for gas burners.

The Armagas BAP DN 150 shut-off valve is indirect (the diaphragm is not directly controlled by a coil, but by the pressure of the flowing gas), direct (it has two positions - open x closed) shut-off suitable for non-explosive environments. It is closed when not powered. According to EN 30, this shut-off cannot be used as an automatic shut-off valve for cooking appliances.

It can only be installed horizontally and at least 15 cm from the ceiling. Ventilation above the valve is also recommended, as there is a possibility of gas escaping above the diaphragm when switching on/off. This condition lasts for a maximum of 1 second.

Features

• power supply 24 VDC
• closed when not powered
• two positions - open/closed
• horizontal installation (min. 15 cm from the ceiling)
• operating overpressure NT 1-5 kPa
• connection size DN 150
• placement of control valves on the right in the direction of gas flow
• non-explosive environment
