IP Rating	IP 66
Lift	10 mm
Material	Aluminium
Operating temperature	-20...50 °C
Weight	4.30 kg

The linear unit of the LIN series converts the quarter-turn movement of the actuator into precise linear motion, enabling the automation of 2-way/3-way valves. Its compact and robust design with IP66 protection is suitable for demanding industrial applications, including explosive environments.

The unit is compatible with …Max-…-…F actuators of size S and M. The dimensions of the unit are approximately 160 × 141 × 206 mm, with an operating temperature of −20...+50 °C.

Main Features

Conversion of rotary motion to linear stroke (fail-safe depending on the actuator used)
Compatibility with …Max-…-…F (size S/M), easy installation
IP66, robust aluminium body, stainless steel/sintered metal gears
IECEx approval (Ex h IIC/IIIC), 100% overload protection

Specifications

Max. Stroke	10 mm
Compatible Actuators	…Max-…-…F, size S / M
Protection	IP66
Body Material	Aluminium
Operating Temperature	−20...+50 °C
Approval	IECEx EPS 20.0029X; Ex h IIC T6/T5/T4 Gb; Ex h IIIC T80°C/T95°C/T130°C Db
Accessories	Ex terminal box, mounting brackets (optional)

Note: For correct selection, it is necessary to know the manufacturer and type of valve and nominal diameter DN; for unknown types, a drawing of the valve part is required.

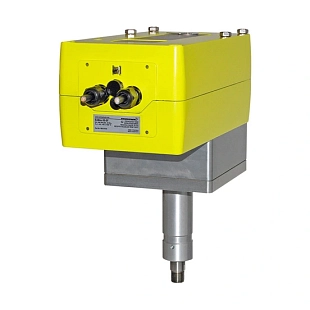

Note: The image shows the ExMax+LIN model.
