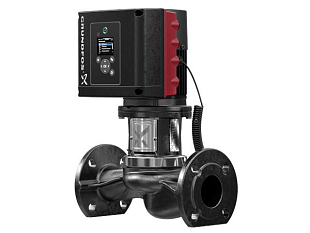

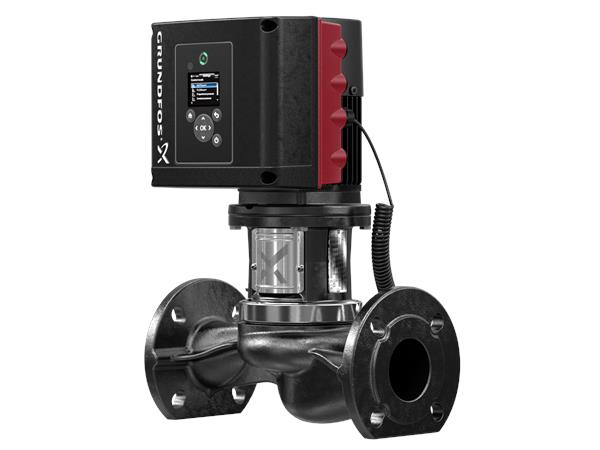

Single-stage dry-running pump with suction and discharge ports of the same diameters on one axis. The pump features a removable top structure "top-pull-out" (motor, pump head, and impeller) which can be removed for maintenance or service, while the pump body remains attached to the piping.

The pump is equipped with an unbalanced seal with a rubber bellows. The motor includes a frequency converter and a PI controller in the motor terminal box. This allows for smooth regulation of the motor speed, thereby adjusting its performance to the given operating conditions. The pump is installed with a differential pressure sensor.

Pump Features

The nominal data of the pump are given at 3900 rpm.

• Nominal flow rate 50.5 m³/h
• Nominal head 12.8 m
• Maximum head 18 m
• Impeller diameter 90 mm
• Mechanical seal with rubber bellows
• Maximum pressure 16 bar
• Connection size DN 80
