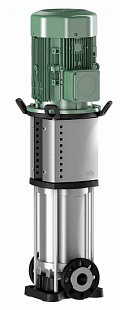

The Wilo Helix V 608-1/16/E/KS/400-50 is a high-pressure multistage pump in a compact vertical design with inline connections and a robust stainless steel construction. It is intended for pressure boosting, water supply, industrial circuits, cooling systems, and fire-fighting equipment. Thanks to its approval for drinking water, it can also be used in waterworks.

The pump is equipped with an IE3 class motor with a power output of 1.5 kW, achieving high efficiency. The special bearing design, cartridge mechanical seal, and laser-welded hydraulics ensure reliable operation, high durability, and long service life. Stainless steel components are ideal for demanding media. The pump is easy to install thanks to lifting eyes and G 1¼ connections.

Main Features

• Multistage high-pressure pump with inline connections
• Stainless steel components – suitable for drinking water
• IE3 motor with 1.5 kW power for direct start
• Maximum operating pressure of 16 bar, medium temperature up to 120 °C
• Cartridge mechanical seal for easy maintenance
• Laser-welded hydraulics for high efficiency
• Easy installation thanks to lifting eyes
• Ideal for water, industry, cooling, and fire-fighting

Technical Specifications
