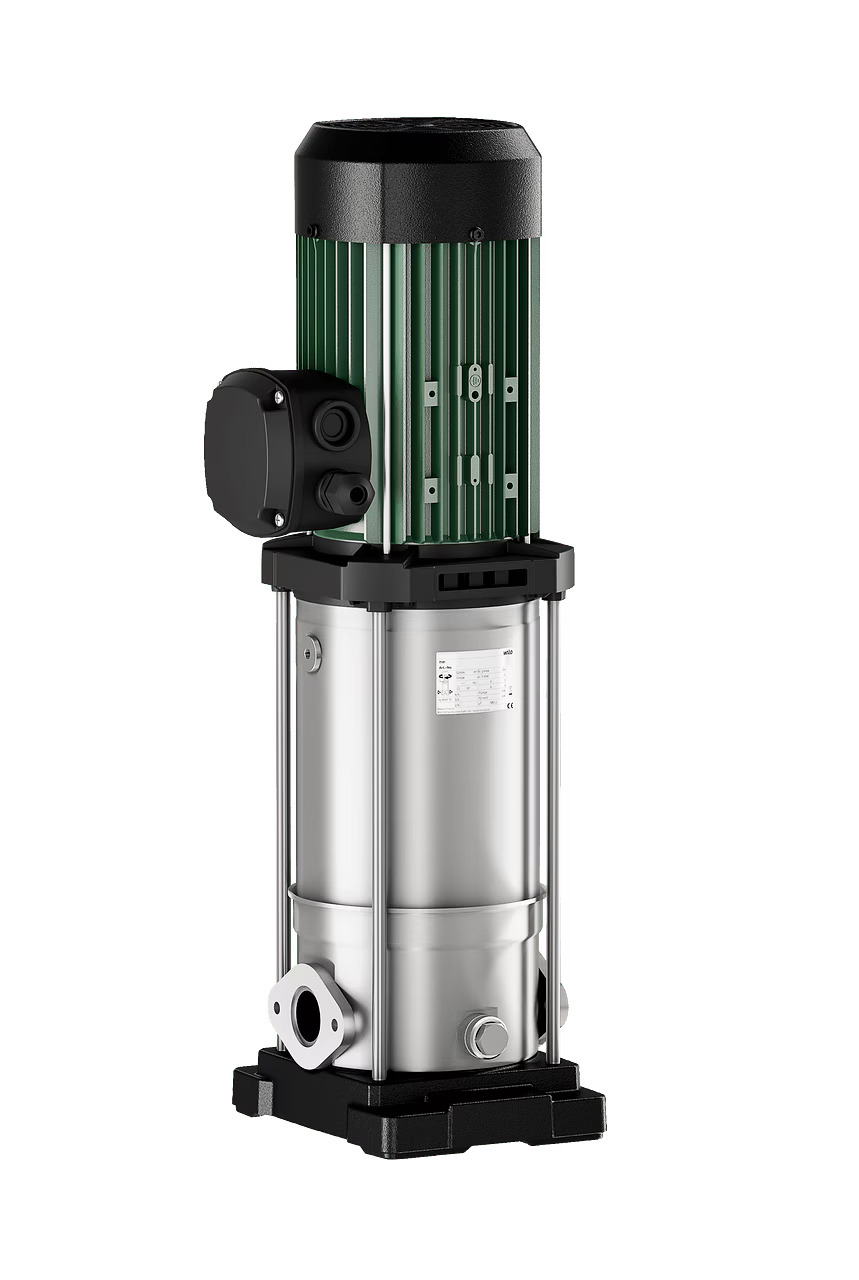

The Wilo MEDANA CV1-L is a vertical multistage pump in an Inline design, ideal for applications requiring compact dimensions and high pressure. Its high-quality stainless steel construction, mechanical seal, and capability to operate at high temperatures make it a versatile choice for both technical and potable water.

These pumps are suitable for pressure boosting systems, industrial circulation, cooling, irrigation, or rainwater utilisation. The compact design allows for easy installation even in space-constrained applications, and thanks to EPDM certification, they are also suitable for potable water.

Main Features

• Vertical design in a compact construction
• Stainless steel parts in contact with the medium
• Operating temperatures up to 120 °C
• Approved for potable water (EPDM)
• Options for oval or circular flange variants

Typical Applications

• Pressure boosting in buildings and technical systems
• Industrial and process circuits
• Closed cooling systems
• Irrigation, washing systems, fire protection

Technical Specifications
