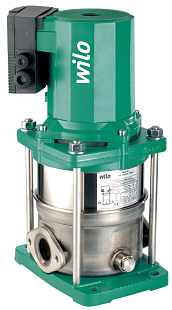

High-Pressure Centrifugal Pump Wilo Multivert MVIS 403-1/16/K (2009043)

High-Pressure Centrifugal Pump Wilo Multivert MVIS 403-1/16/K (2009043)

WILO
  • Product code: 2009043
  • EAN : 4016322311393
  • Manufacturer code: 2009043
  • Warranty: 2 years

Compact vertical stainless steel pump with a wet-running motor, quiet operation, and approval for drinking water. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 2 221,56
Price excluding VAT € 1 468,80
Price with VAT 21 % € 1 777,25
+

Parameters and catalogs

Operating pressure PN 16
Power Supply 400 VAC, 230 VAC
Pump flow rate 8 m3/h
Pump head 34 m
Weight 23.00 kg

Catalog sheet download

Download PDF

The Wilo Multivert MVIS 403 is a compact, multistage vertical pump with an inline design, engineered for water supply and pressure boosting in systems with clean or potable water. Thanks to its wet-running motor with direct drive, the pump operates extremely quietly, which is appreciated by users in both residential and commercial properties.

All parts in contact with the medium are made of stainless steel, ensuring the pump meets hygienic requirements for drinking water (EPDM). Its seal-less design makes it almost maintenance-free, and connection via oval flanges ensures quick installation. The 1.1 kW power output is ideal for smaller pressure assemblies or standalone applications.

Main Features

  • Vertical high-pressure pump with inline design
  • Quiet operation thanks to wet-running motor
  • Seal-less design – minimal maintenance
  • Stainless steel construction with EPDM – suitable for drinking water
  • Compact dimensions and easy installation
  • Approved for operating pressure up to 16 bar
  • Ideal for pressure boosting in smaller systems
  • Direct motor start, power supply 3~230–400 V

Technical Specifications

Rated motor power 1.1 kW
Mains connection 3~230–400 V, 50 Hz
Motor speed 2900 1/min
Protection class / insulation IP44 / F
Max. operating pressure 16 bar
Inlet pressure 10 bar
Medium temperature –15...50 °C
Ambient temperature –15...40 °C
Suction / discharge connections G 1¼ / G 1¼
Casing / impeller material Stainless steel
Shaft / seal material Stainless steel / EPDM
