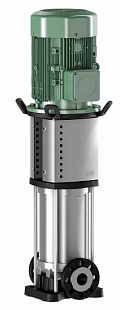

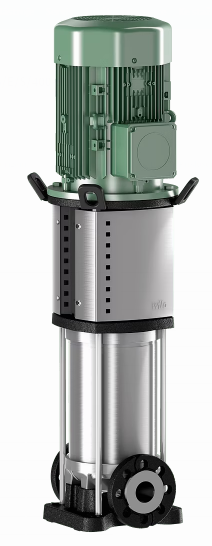

Pump Wilo-HELIX V1608-1/16/E/S/400-50 is a highly efficient, high-pressure, centrifugal pump in a vertical design with inline connections, designed for water supply, pressure boosting, and use in industrial circulation systems. Its compact construction and easy maintenance, along with long service life due to high-quality materials and special design, make this model a reliable choice for various applications.

Main Features:

• Minimum and maximum medium temperature: -30 °C to 120 °C.
• Nominal motor power: 5.5 kW; Motor energy class: IE3.
• Inlet pressure: 10 bar; Maximum operating pressure: 16 bar.
• Materials: Pump casing, impeller, shaft - stainless steel; Seals - BQ1EGG, EPDM.
• Network connection: 3~400 V, 50 Hz; Voltage tolerance: ±10%.
• Nominal speed: 2900 1/min; Insulation class: F; Motor protection class: IP55.
• Pipe connection: Inlet and outlet G 2.

This pump is ideal for applications requiring reliable and efficient medium transport, such as water circuits, cooling systems, and fire-fighting equipment. Thanks to its high energy efficiency and robust construction, it is suitable for demanding operating conditions.
