The pipeline separator is designed to protect drinking water systems from contamination caused by back pressure, backflow, or back siphonage. This product meets the requirements of the ČSN EN1717 standard for hazardous liquids of class 3 and is certified (NF, WRAS, KIWA, BELGAQUA). It is ideal for installation in a horizontal position with the drain valve facing downwards.

Key Features

• Design: Integrated strainer, easy access to components, low pressure loss.
• Materials: Dezincification-resistant brass, EPDM seals, high-quality synthetic materials.
• Certification: ACS certification and KTW approval for drinking water.
• Installation specifics: Requires shut-off valves before and after the separator, suitable for clean and well-ventilated spaces.

Technical Specifications

• Connection: External thread R 3/4" (DN 20)
• Maximum flow rate at Δp = 1.0 bar: 0.7 m³/h
• Dimensions: 155 mm length, 87 mm width, 142 mm height
• Weight: 700 g
• Operating temperature: 0...65°C
• Maximum pressure: 10 bar

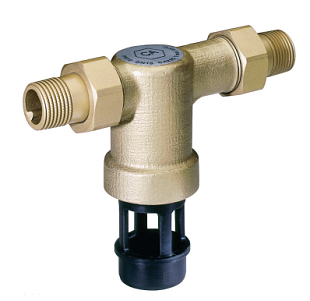

The CA295-3/4A pipeline separator offers robust protection for water systems with an emphasis on easy maintenance and high flow rate. Ideal for technically demanding environments requiring reliable backflow protection solutions.
