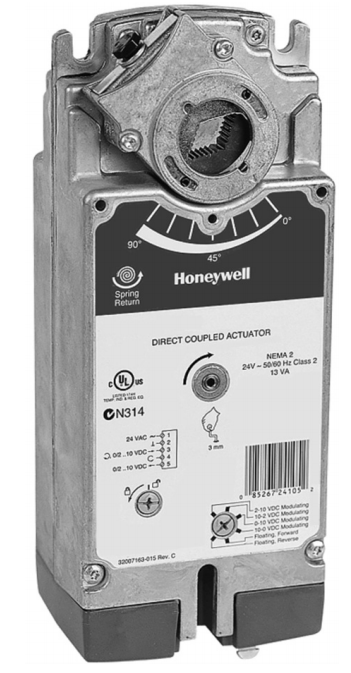

Honeywell SmartAct Spring Return Actuator S2024-2POS-SW2, 20Nm, 24 VAC, 2 End Switches

Honeywell SmartAct Spring Return Actuator S2024-2POS-SW2, 20Nm, 24 VAC, 2 End Switches
  • 2 variants

Honeywell SmartAct Spring Return Actuator S2024-2POS-SW2, 20Nm, 24 VAC, 2 End Switches

HONEYWELL
  • Product code: S2024-2POS-SW2
  • EAN : 085267241335
  • Manufacturer code: S2024-2POS-SW2
  • Warranty: 2 years

Honeywell SmartAct S2024-2POS-SW2 flap actuator with return spring for continuous control or 3/2 point regulation. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 11,12
    BPost - PP (Pick-up Point):
    3.1 workdays € 10,39
    FedEx Priority:
    1.7 workdays € 17,18
    DHL Express:
    1.1 workdays € 22,99

    DHL Express: 1.1 workdays, € 22,99

  • In stock 1 pcs

List price € 461,57
Price excluding VAT € 305,17
Price with VAT 21 % € 369,26

Product variants

− +

Trustpilot

Parameters and catalogs

Control -40...180 °C
Damper size 4 m²
Emergency function 86 mm
IP Rating IP 54
Power Supply 24 VAC
Setup time 90 s
Torque 20 Nm
Weight 3.20 kg

Catalog sheet download

Download PDF

Honeywell SmartAct S2024-2POS-SW2 damper actuator with return spring for continuous control or 3/2 point regulation.

Features:

  • Noise dampers mounted on drive shafts
  • Quarter-turn valves (ball or butterfly) can be mounted directly on the drive shaft
  • Safety function with return spring with return <25 s (at temperature -20°...+65°C) up to <60 s (at temperature -30°C)
  • Auxiliary switch (SPDT)
  • Protection class IP54 and NEMA 2
  • 2 End switches

Manual operation:

1.) Insert the supplied key.

2.) Turn the key 1/4 turn in the direction indicated on the cover.

3.) Remove the key without inserting the gearbox locking pin.

4.) The spring will return the actuator to a safe position.

NOTE: After power is restored, the actuator will return to normal automatic control.
