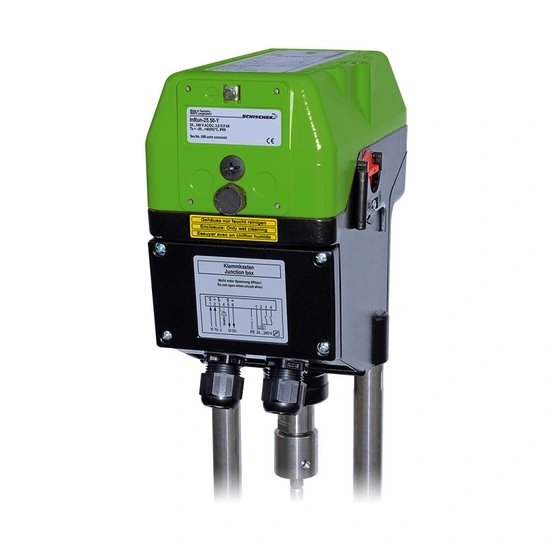

Schischek InRun 25.50 (090.4603) is a linear valve actuator designed for use in safe environments. It is part of the InRun series of valve actuators, which are used for the automation of 2-way and 3-way valves with 3-position on/off or modulating mode. The actuator is equipped with features such as adjustable running time and mechanical stroke limitation.

Adjustable Stroke

Stroke 5 to 60 mm, mechanical limitation.

For Safe Areas

Designed for use in safe areas.

Automatic Adaptation

Automatic adaptation of the modulating signal.

Compact Dimensions

Compact dimensions, lightweight.

Technical Specifications:

• Product Type: InRun
• Application: Automation of 2-way and 3-way valves
• Control: 3-position on/off or modulating mode
• Stroke: 5 to 60 mm, mechanical limitation
• Power Supply: 24...240 V AC/DC, self-adaptation
• Enclosure: Aluminium, IP66
• Operating Temperature: -20…+40°C/+50°C
• Force: 2.5 kN / 5.0 kN
• Speed: 2/3/6/9/12 s/mm

The InRun 25.50 (090.4603) is designed for reliable operation and ensures precise valve control in safe areas. Its main advantages are compactness, easy installation, and versatility.
