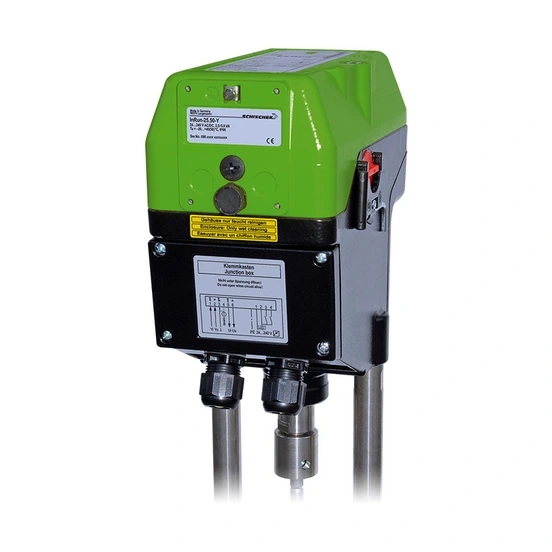

The Schischek InRun 5.10-CTS (090.4700) is a linear valve actuator designed for use in safe environments. It is part of the InRun series of valve actuators used for automating 2 and 3-way valves with 3-position on/off or modulating mode. The actuator is equipped with features such as adjustable running time and mechanical stroke limitation. Additionally, this model comes with an aluminium casing with a seawater-resistant finish and nickel-plated parts for use in demanding environments.

Adjustable Stroke

Stroke 5 to 60 mm, mechanical limitation.

For Safe Areas

Designed for use in safe areas.

Automatic Adaptation

Automatic adaptation of the modulating signal.

Corrosion Resistance

Aluminium casing with marine environment finish.

Technical Specifications:

• Product Type: InRun
• Application: Automation of 2 and 3-way valves
• Control: 3-position on/off or modulating mode
• Stroke: 5 to 60 mm, mechanical limitation
• Power Supply: 24...240 V AC/DC, self-adaptation
• Casing: Aluminium, IP66, with marine environment finish
• Operating Temperature: -20…+40°C/+50°C
• Force: 0.5 kN / 1.0 kN
• Speed: 2/3/6/9/12 s/mm

The InRun 5.10-CTS (090.4700) is designed for reliable operation and ensures precise valve control in safe areas, even under demanding conditions. Its main advantages are compactness, easy installation, versatility, and corrosion resistance.
