Multistage Submersible Pump Wilo Sub TWI 5-506EM (4144952)

Compare
Print
Send to e-mail

Send product by e-mail:Multistage Submersible Pump Wilo Sub TWI 5-506EM (4144952)

From email

To email

Additional message

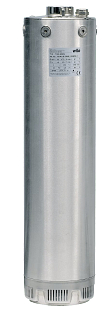

Multistage Submersible Pump Wilo Sub TWI 5-506EM (4144952)

Product code: 4144952
EAN : 4048482106397
Manufacturer code: 4144952
Warranty: 2 years

Submersible pump for drawing water from wells. Includes a 20 m power cable, 230 V power supply. H=67 m, Q=9 m3/h. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 0,00

FedEx Priority:
1.7 workdays € 115,43

DHL Express:
1.1 workdays € 162,14

DHL Express: 1.1 workdays, € 162,14
In stock 1 pcs

Parameters and catalogs

Cable length	20 m
Float	No
Integrated control unit	No
Maximum immersion depth	17 m
Power Supply	230 VAC

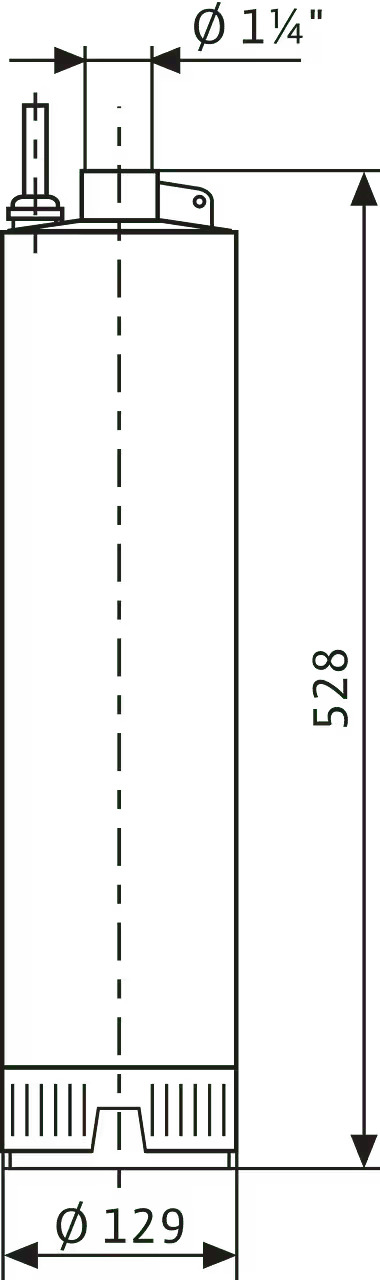

Pump diameter	127 mm
Pump flow rate	9 m3/h
Pump head	67 m
Weight	20.75 kg

Data sheet download

Download PDF

Assembly instructions download

Download PDF

REACH certificate download

Download PDF

Submersible well pump Wilo Sub-TWI 5 in a fully stainless steel design. The improved construction extends the lifespan and resistance to wear from sand.

Usage

The pumps are ideal for transferring clean water from ring wells, cisterns, and tanks for the purpose of irrigation, spraying, and water supply. Also suitable for rainwater utilisation. The pump does not require a cooling jacket. Installation of the pump is possible both in a dry environment and above the bottom of the tank up to a depth of 17 m.

Advantages

Options for connecting a floating filter
Safety rope made of polypropylene
Possible vertical or horizontal installation
All parts in contact with the medium are corrosion-resistant (stainless steel 1.4301)
Cooled electric motor
Built-in motor protection against overload including automatic reset
