Multistage Submersible Pump Wilo Sub-TWI 5-SE 307EM FS (4144964)

Compare
Print
Send to e-mail

Send product by e-mail:Multistage Submersible Pump Wilo Sub-TWI 5-SE 307EM FS (4144964)

From email

To email

Additional message

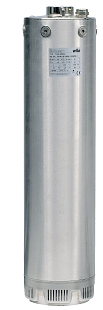

Multistage Submersible Pump Wilo Sub-TWI 5-SE 307EM FS (4144964)

Product code: 4144964
EAN : 4048482106007
Manufacturer code: 4144964
Warranty: 2 years

Submersible pump for drawing water from wells. Includes a 20 m power cable, 230 V power supply. H=78 m, Q=5.9 m3/h. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx:
2.4 workdays € 0,00

FedEx Priority:
1.7 workdays € 115,43

DHL Express:
1.1 workdays € 162,14

DHL Express: 1.1 workdays, € 162,14
In stock 2 pcs

Parameters and catalogs

Cable length	20 m
Float	No
Integrated control unit	No
Maximum immersion depth	17 m
Power Supply	230 VAC
Pump diameter	127 mm
Pump flow rate	5.9 m3/h
Pump head	78 m
Weight	21.68 kg

Data sheet download

Download PDF

Assembly instructions download

Download PDF

Reach certificate download

Download PDF

Submersible pump for wells Wilo Sub-TWI 5 in a completely stainless steel design. The improved construction extends the lifespan and resistance to wear from sand.

Application

The pumps are ideal for transferring clean water from ring wells, cisterns, and tanks for the purpose of irrigation, spraying, and water supply. Also suitable for rainwater utilisation. The pump does not require a cooling jacket. Installation of the pump is possible in both dry environments and above the bottom of the tank up to a depth of 17 m.

Advantages

Options for connecting a floating filter
Safety rope made of polypropylene
Possible vertical or horizontal installation
All parts in contact with the medium are corrosion-resistant (stainless steel 1.4301)
Cooled electric motor
Built-in motor protection against overload including automatic reset
