Multistage Submersible Pump Wilo Sub-TWI4.14-23-DM-D (6081551)

Product code: 6081551
EAN : 4048482739649
Manufacturer code: 6081551
Warranty: 2 years

Submersible pump for drawing water from wells. Includes a 2.5 m power cable, 230 V power supply. H=138 m, Q=22.8 m3/h. More information

Delivery

Delivery to Belgium (days are avarages)

FedEx Freight:
2.3 workdays € 61,71
In stock 1 pcs

Parameters and catalogs

Cable length	2.5 m
Float	No
Integrated control unit	No
Maximum immersion depth	350 m
Power Supply	400 VAC

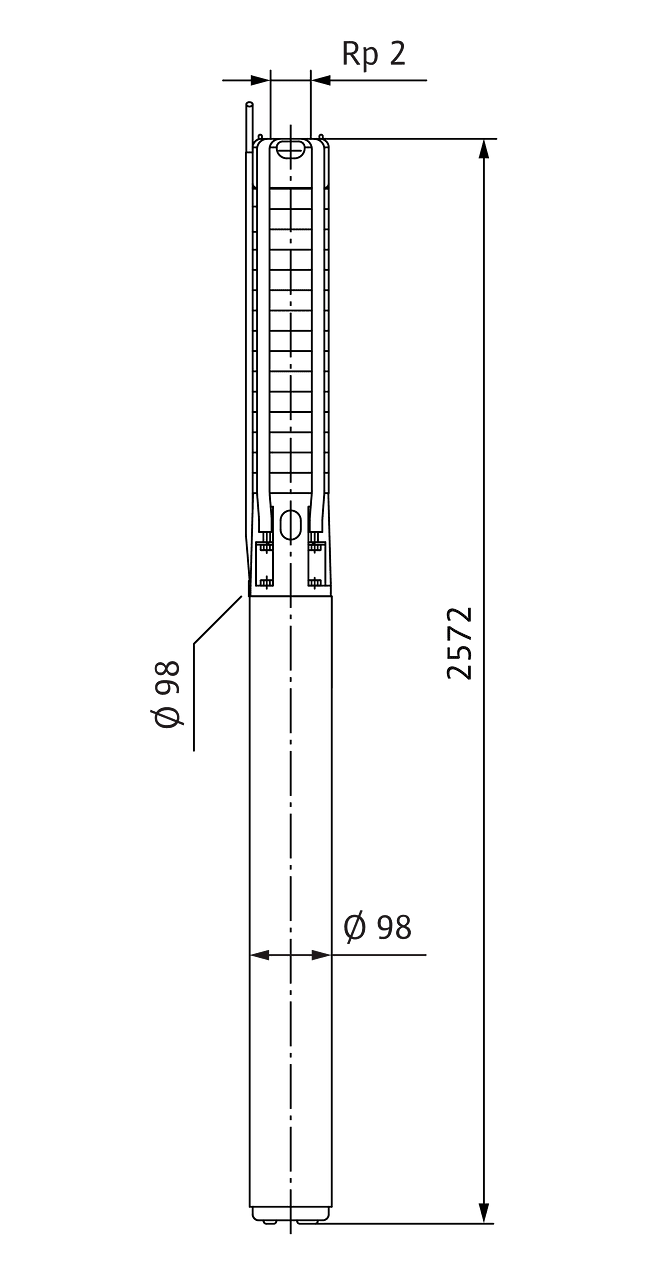

Pump diameter	98 mm
Pump flow rate	22.8 m³/h
Pump head	138 m
Weight	46.50 kg

Data sheet download

Download PDF

Installation instructions download

Download PDF

Reach certificate download

Download PDF

Certificate download

Download PDF

Submersible pump for wells Wilo Sub-TWI 4 in a completely stainless steel design. Thanks to the improved construction, the lifespan is extended and resistance to sand wear is increased.

Application

The pumps are ideal for transferring clean water from ring wells, cisterns, and tanks for the purpose of irrigation, spraying, and water supply. Also suitable for rainwater utilisation. The pump does not require a cooling jacket. Installation of the pump is possible both in a dry environment and above the bottom of the tank up to a depth of 350 m.

Advantages

Options for connecting a floating filter
Safety rope made of polypropylene
Possible vertical or horizontal installation
All parts in contact with the medium are corrosion resistant (stainless steel 1.4301)
Cooled electric motor
Built-in motor protection against overload including automatic reset

Delivery Contents

Pump with 2.5m cable and ACS certification
Cabinet switchboard with capacitor, thermal motor protection, and on/off switch
Installation and operation manual

Performance Curve
