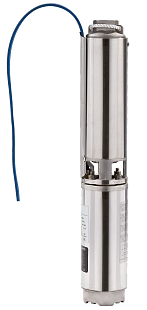

Submersible pump for wells Wilo Sub-TWU 4 in a completely stainless steel design. The improved construction extends the lifespan and resistance to wear from sand.

Application

The pumps are ideal for transferring clean water from ring wells, cisterns, and tanks for the purpose of irrigation, spraying, and water supply. Also suitable for rainwater utilization. The pump is cooled by the pumped medium and therefore must be fully submerged. Installation of the pump is possible at the bottom of the tank up to a depth of 200 m.

Advantages

• Options for connecting a floating filter
• Safety rope made of polypropylene
• Possible vertical or horizontal installation
• All parts in contact with the medium are corrosion-resistant (stainless steel 1.4301)
• Cooled electric motor
• Built-in motor protection against overload including automatic reset

Delivery Contents

• Pump with 1.8m cable
• Hydraulics + motor assembled
• Control cabinet with capacitor, thermal motor protection, and on/off switch
• Installation and operating instructions
