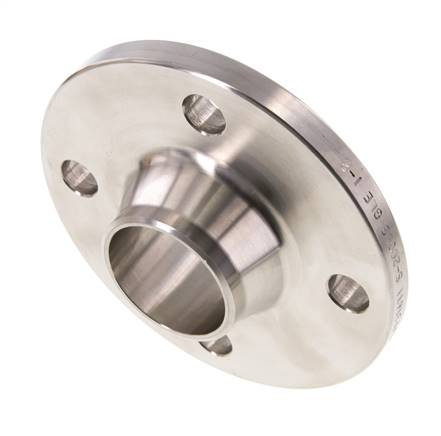

Neck Flange DIN 2633 PN 16 DN 150

Neck Flange DIN 2633 PN 16 DN 150
  • 2 variants

Neck Flange DIN 2633 PN 16 DN 150

BOLA SYSTEMS
  • Product code: K22.001630
  • Manufacturer code: K22.001630
  • Warranty: 2 years

Neck flange EN 1092-1, PN 16, DN 150. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 30,16
Price with VAT 21 % € 36,49

Product variants

− +

Trustpilot

Parameters and catalogs

Connection size DN 150
Material Steel
Pressure 16 bar
Weight 7.40 kg

Neck flange according to EN 1092-1 standard for pipeline pressure PN 16 and connection size DN 150.

Size D d1 d2 d3 d4 b k h1 h2 s r f
DN 15 80 21.3 11 30 40 12 55 30 6 2 4 2
DN 20 90 26.9 11 38 50 14 65 32 6 2.3 4 2
DN 25 100 33.7 11 42 60 14 75 35 6 2.6 4 2
DN 32 120 42.4 14 55 70 14 90 35 6 2.6 6 2
DN 40 130 48.3 14 62 80 14 100 38 7 2.6 6 3
DN 50 140 60.3 14 74 90 14 110 38 8 2.9 6 3
DN 65 160 76.1 14 88 110 14 130 38 9 2.9 6 3
DN 80 190 88.9 18 102 128 16 150 42 10 3.2 8 3
DN 100 210 114.3 18 130 148 16 170 45 10 3.6 8 3
DN 125 240 139.7 18 155 178 18 200 48 10 4 8 3
DN 150 265 168.3 18 184 202 18 225 48 12 4.5 10 3
DN 200 320 219.1 18 236 258 20 280 55 15 6.3 10 3
