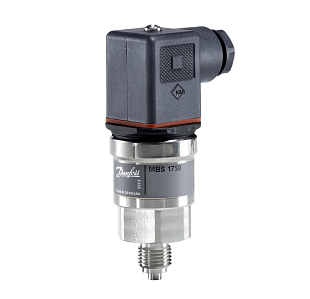

Pressure Sensor Danfoss MBS 1700, 0-6 bar, 4-20 mA (060G6100)

Pressure Sensor Danfoss MBS 1700, 0-6 bar, 4-20 mA (060G6100)

DANFOSS
  • Product code: 060G6100
  • EAN : 5702423295340
  • Manufacturer code: 060G6100
  • Warranty: 2 years

Robust pressure sensor Danfoss MBS 1700 for reliable measurement and transmission of pressure in industrial applications and compressors. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • In stock 2 pcs

List price € 269,72
Price excluding VAT € 133,75
Price with VAT 21 % € 161,84
+

Parameters and catalogs

Connection size G 1/4
Connection Type External thread
IP Rating IP 65
Output 4...20 mA
Pressure range 0...6 bar
Weight 0.21 kg

The Danfoss MBS 1700 pressure transmitter (060G6100) is designed for precise measurement of relative pressure and its conversion to a standard current signal for control systems. Thanks to its robust construction, it is suitable for more demanding operating conditions, typically in applications around compressors.

The sensor measures in the range of 0-6 bar (0-87 psi) and provides an output of 4–20 mA. The power supply is 9-32 VDC and the enclosure rating is IP65. Connection is via a G 1/4 pressure thread according to EN 837 and an electrical angular connector according to EN 175301-803-A.

Main Features

  • Measurement range 0-6 bar (0-87 psi), relative pressure (gauge)
  • Current output 4–20 mA
  • Power supply 9-32 VDC
  • Enclosure rating IP65
  • Fast response (max. 4 ms) and overpressure resistance (max. 36 bar)

Technical Specifications

Measuring range 0-6 bar (0-87 psi)
Pressure type Relative (gauge)
Output 4–20 mA
Power supply 9-32 VDC
Accuracy ±0.5 % FS
Enclosure rating IP65
Ambient temperature range -40...85 °C
Media temperature range -40...85 °C

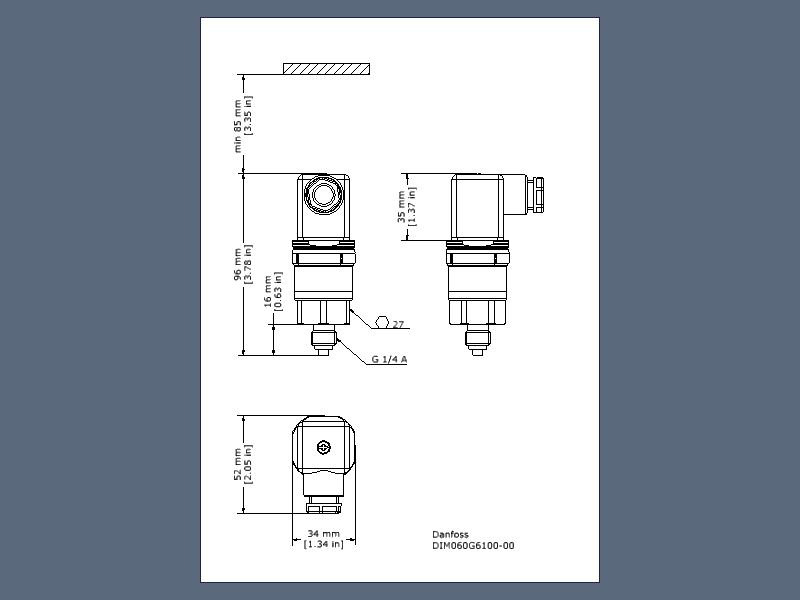

Connection (pressure) G 1/4 (EN 837)
Electrical connection Angular connector, EN 175301-803-A, Pg 9
Certification CE, UL
