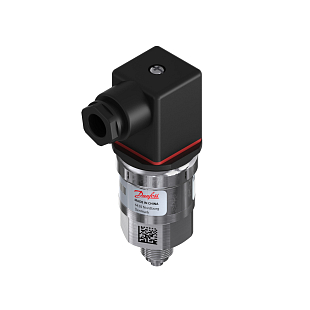

Name: Pressure Sensor Danfoss MBS 3000, 0-16 bar, 4-20mA (060G1103)
Brand: DANFOSS
Price: 164.83 EUR
Availability: OutOfStock

Parameters and catalogs

Atex	Zone 2
Connection Type	External thread
IP Rating	IP65
Output	4...20 mA
Pressure range	0...16 bar
Weight	0.20 kg

Data sheet EN download

Download PDF

Catalog sheet CZ download

Download PDF

Installation instructions download

Download PDF

The compact pressure sensor is designed for use in industrial and hydraulic applications. It offers reliable pressure measurement even in challenging conditions.

The MBS 3000 series covers various output signals, versions with relative or absolute pressure, and measurement ranges from 0–1 to 0–600 bar. They are characterized by robust construction and high resistance to vibrations and electromagnetic interference.

Technical Specifications

Output signal 4-20 mA
ATEX certificate
Operating temperature - 48...85° C
Measuring range 0...16 bar
Standard pressure connection G 1/4 ISO 228/1
For use in many industrial applications: pumps, compressors, pneumatic devices, industrial pipelines

A Perfect Sensor Made with Expert Know-How

1. Electronics

2. Sensing Element

3. Housing

A. Shock Protection

B. Stainless Steel Parts

1. Electronics

Danfoss pressure sensors come with digital electronics and offer unique technical parameters in the following areas:

accuracy
operating temperature range
protection against electromagnetic and RF interference
various sensor function modes:
- pressure measurement
- pressure measurement and switching

2. Sensing Element

Thanks to Danfoss offering two sensing technologies, it can meet versatile application requirements and provide highly competitive solutions.
Both technologies are designed for operation in several different environments:

piezoresistive semiconductor technology covers pressure ranges from 1 to 600 bar.
- this technology is available in absolute or relative versions
thin-film technology is mainly used in high-pressure applications up to 2200 bar
- this technology is available only in a relative version.

3. Housing

The sensor design ensures stable operation throughout its lifetime thanks to:

high resistance to shocks and vibrations
high degree of protection (up to IP 69K)
A. Shock Protection - solutions with shock limitation preventing hydraulic shocks and cavitation
B. Stainless Steel Parts - all wetted parts are made of stainless steel
