Compact pressure sensor for industrial applications with high resistance to vibrations, interference, and demanding operating conditions. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Connection size | G 1/4 |
| IP Rating | IP 65 |
| Medium Temperature | -20...100 °C |
| Output | 4...20 mA |
| Pressure range | 0 - 100 mbar |
| Weight | 0.18 kg |

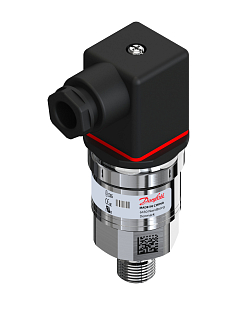

The Danfoss MBS 9200 pressure sensor is a compact pressure transmitter designed for industrial use, such as on engines (crankcase, turbochargers), for filter monitoring, or in level measurement applications. It features a robust construction, high resistance to vibrations, and effective EMC/EMI protection. The design with wetted parts made of stainless steel (AISI 316L) is suitable for demanding conditions and long-term operation. The MBS 9200 series is available with a 4–20 mA output or a ratiometric signal of 10–90% of the supply (depending on the variant).
| Measuring Range | 0-100 mbar |
| Output Signal | 4–20 mA or ratiometric 10–90% of supply (depending on variant) |
| Supply | 9–32 V DC (for 4–20 mA) / 5 V DC ±10% (for ratiometric output) |
| Overload (static) | 3.5 bar |
| Burst Pressure | 50 bar |
| Response Time | < 2 ms |
| Medium Temperature (depending on sealing) | FPM: -20...100 °C / NBR: -25...85 °C |
| Compensated Temperature Range | 0...80 °C |
| Storage / Transport | -40...125 °C |
| Material of Wetted Parts | Stainless steel AISI 316L |
