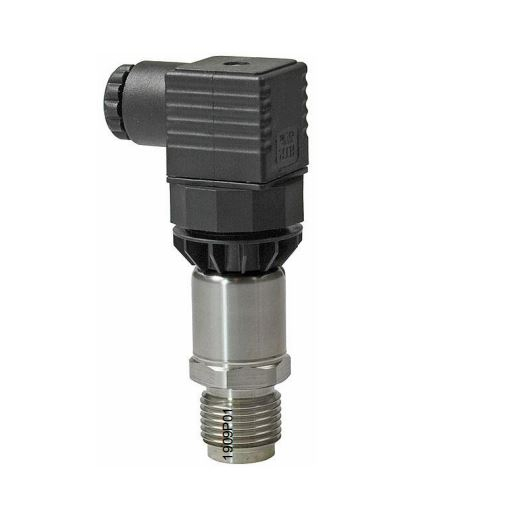

Pressure sensor for gases and liquids for measuring relative pressure in hydraulic and pneumatic systems. Piezoresistive measuring principle with an output signal of 0-10 VDC. Measurement is not affected by temperature changes.

Construction:

• Sensor housing with socket connection
• Piezoresistive measuring element embedded in a stainless steel casing
• External thread G1/2"
• Internal thread M5 for applications equipped with remote mounting kit AQB2001
• Socket DIN EN 175301-803-A

Features:

• Range 0...10 bar
• Supply voltage 24 VAC or 12-33 VDC
• Protection class IP 65
• Operating temperature -30...85 °C
• High measurement accuracy
• Temperature stability
• Maintenance-free
• High resistance to overpressure
