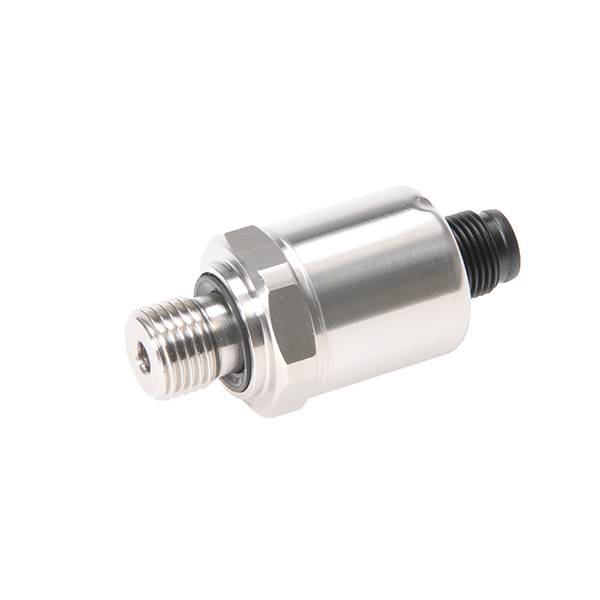

Compact pressure sensor Huba Control 528 for a range of 0–1 bar with an output of 4–20 mA, designed for a wide range of industrial applications. More information
Out of stock - can be requested
| Connection size | G 1/4 |
| IP Rating | IP 65 |
| Output | 4...20 mA |
| Pressure range | 0...1 bar |
| Temperature | -15...80 °C |
| Weight | 0.30 kg |
Operating instructions download
Download PDF
Prospectus download
Download PDF
Catalog sheet EN download
Download PDFThe pressure sensors of the 528 series utilize Huba Control's ceramic measuring technology, which has been validated by millions of installations over more than 20 years. Thanks to their compact and robust design, they are suitable for a wide range of industrial applications where reliable and stable measurement of relative pressure is required.
The transmitter in this design measures a range of 0-1 bar and provides a current output of 4–20 mA. The construction minimizes the influence of temperature on accuracy and also offers various connection options, including a quick screw connector for cost-effective installation for the customer.
| Measured Pressure | 0-1 bar (relative) |
| Output Signal | 4-20 mA |
| Accuracy | typ. ±0.3 % FS |
| Medium Temperature | -15...100 °C (depending on sealing) |
| Ambient Temperature | -30...85 °C |
| Material of Parts in Contact with Medium | stainless steel 1.4404 / AISI 316L, ceramic Al2O3 |
