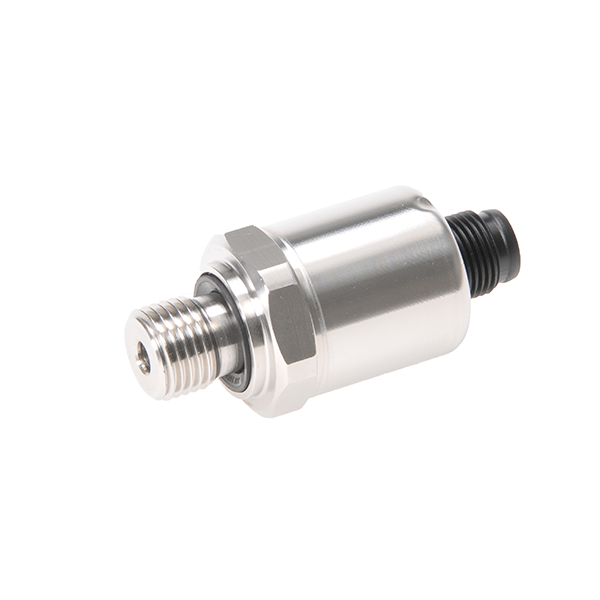

Pressure Sensor Huba Control 528.9300031411 0-10 bar / 4-20 mA

Pressure Sensor Huba Control 528.9300031411 0-10 bar / 4-20 mA

HUBA CONTROL
  • Product code: 528.9300031411
  • Manufacturer code: 528.9300031411
  • Warranty: 2 years

Compact pressure sensor with a ceramic sensor for reliable measurement of liquid and gas pressure in industrial applications. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 156,57
Price with VAT 21 % € 189,45
+

Parameters and catalogs

Connection size G 1/4
IP Rating IP 65
Output 4...20 mA
Pressure range 0...10 bar
Temperature -15...80 °C
Weight 0.30 kg

Prospectus download

Download PDF

Operating instructions download

Download PDF

Catalog sheet EN download

Download PDF

The compact pressure sensors of the Huba Control 528 series utilise proven ceramic technology, which has been industry-tested over many years of operation. They are designed for measuring both relative and absolute pressure of liquids and gases across a wide range of applications.

The robust stainless steel construction ensures long service life and stable accuracy with minimal temperature influence. Thanks to the variants of electrical connectors and quick cable connection, installation is easy and time-saving.

Main Features

  • Compact and mechanically robust design
  • Ceramic measuring cell with long-term stability
  • Minimal temperature influence on measurement accuracy
  • Multiple connector and pressure connection options
  • Quick and easy installation

Technical Specifications

Pressure Range 0-10 bar (relative)
Output Signal 4-20 mA, 2-wire connection
Power Supply 7...33 VDC
Measured Medium Liquids and gases
Protection IP65 / IP67 depending on connector type
Body / Sensor Material Stainless steel / ceramic Al2O3
Electrical Connection Industrial connectors (e.g., DIN, M12) depending on variant
Certification CE, optionally ATEX for intrinsically safe versions
