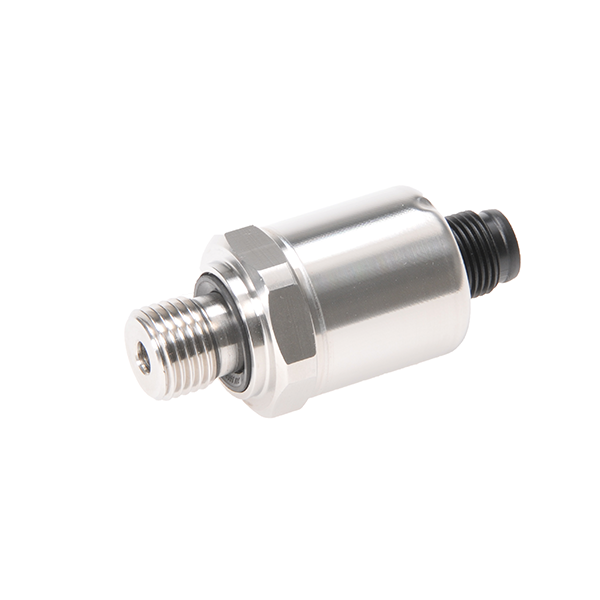

Pressure Sensor Huba Control 528.9300081411 0-10 bar / 0-10 V

Pressure Sensor Huba Control 528.9300081411 0-10 bar / 0-10 V

HUBA CONTROL
  • Product code: 528.9300081411
  • Manufacturer code: 528.9300081411
  • Warranty: 2 years

Reliable pressure sensor for measuring the pressure of liquids and gases in industrial applications, with quick response and stable output. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 156,57
Price with VAT 21 % € 189,45
+

Parameters and catalogs

Connection size G 1/4
IP Rating IP 65
Output 0-10 V
Pressure range 0...10 bar
Temperature -15...80 °C
Weight 0.30 kg

Prospectus download

Download PDF

Operating instructions download

Download PDF

Catalog sheet EN download

Download PDF

The Huba Control 528 pressure sensor is designed for precise measurement of both relative and absolute pressure of liquids and gases across a wide range of industrial operations. It utilizes a piezoelectric ceramic measuring cell with a diaphragm in a robust stainless steel body, ensuring long-term stability and durability in both standard and demanding operations.

The version with a voltage output of 0–10 V is suitable for standard control systems and automation, where smooth and clear pressure evaluation is required. The sensor is factory-set to a specific range and requires no maintenance, but during installation, it is necessary to adhere to the overload limit and ensure media compatibility with the sensor materials.

Main Features

  • Accurate measurement of both relative and absolute pressure of liquids and gases
  • Durable construction with a stainless steel casing and ceramic sensor
  • Voltage output 0–10 V for easy integration into control systems
  • Maintenance-free operation and stable measuring characteristics
  • Accuracy independent of mounting position
Pressure Measuring Range 0-10 bar
Output Signal 0-10 V
Measured Medium liquids, gases
Ambient Temperature -25...85 °C
Measuring Cell Construction piezoelectric ceramic sensor with diaphragm
Compliance / EMC CE, EN 61326-2-3
