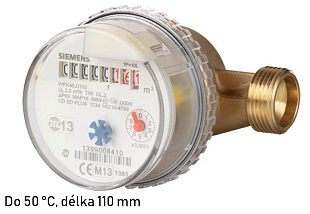

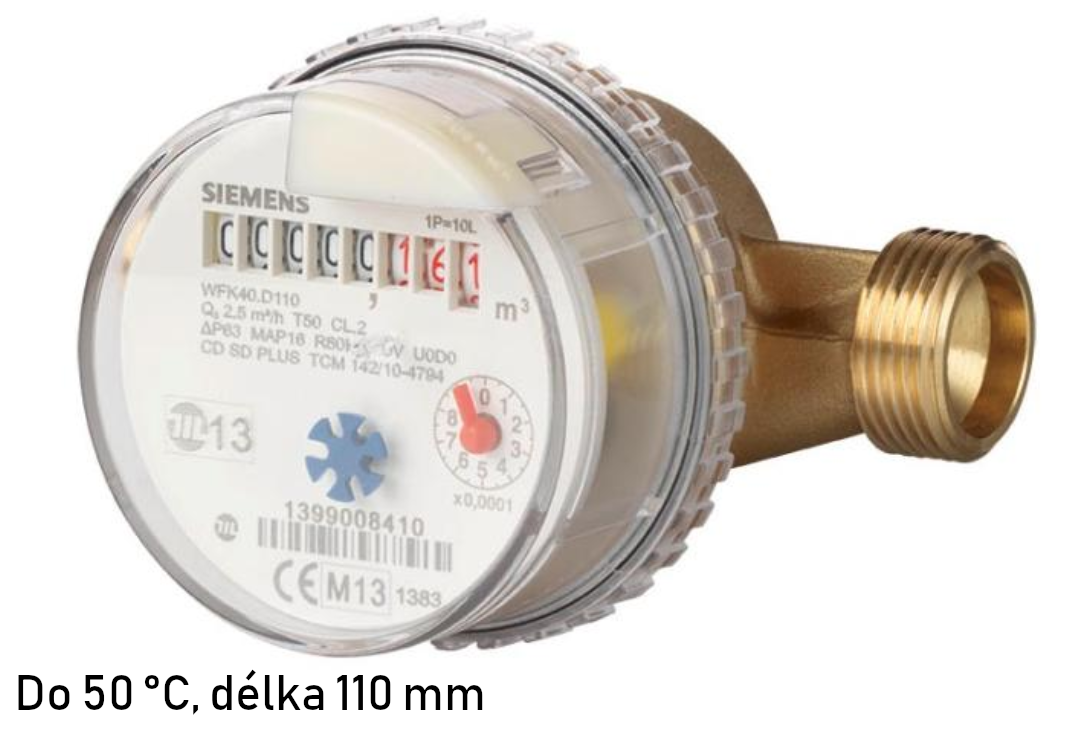

Mechanical water meter SIEMENS for measuring cold and hot water up to 50 °C. Option to add a remote reading pulse module WFZ44 (Reed) or WFZ43 (Namur) with an output of 10l/pulse. The pulse output can be connected to an M-Bus directive pulse adapter or to the Siemeca WalkBy, Siemeca AMR radio system. Suitable for use in buildings with a central water supply, such as apartment buildings or commercial properties.

Features:

• Permanent flow rate Q3 is 2.5 m³/h
• Nominal flow rate Qn is 1.5 m³/h
• Construction length 110 mm
• Max. operating pressure PN 16 bar
• Option to add a pulse module for remote reading
• EC type examination certificate (certification according to MID)
