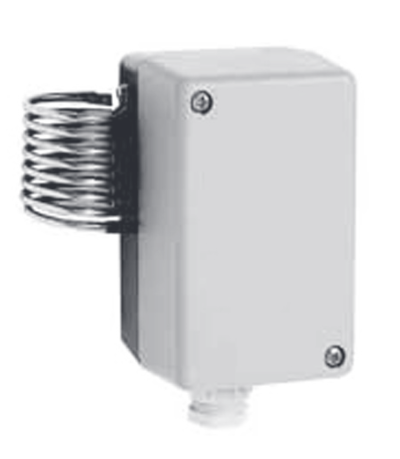

Room Thermostat Ex Schischek TBR-2G

Room Thermostat Ex Schischek TBR-2G

Schischek
  • Product code: 4103.5
  • Manufacturer code: 057.1427
  • Warranty: 1 year

Room thermostat with output contact for hazardous environments in zones 1 and 2. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 296,87
Price with VAT 21 % € 359,21
+

Parameters and catalogs

Atex Zone 2, Zone 1
Measurement range 0...40 °C
Weight 0.20 kg

The room thermostat is designed for monitoring, regulating, and limiting temperature in non-aggressive environments. When connected to the Ex-IR-9170 amplifier, it can be used in explosive environments in zones 1 and 2. The thermostat is powered through the Ex-IR-9170.

Features

  • ambient temperature -20...65 °C
  • adjustable measurement range 0...40 °C
  • protection rating IP 54
  • ATEX zones 1, 2
