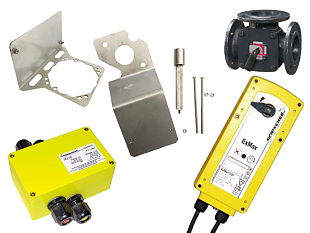

The Schischek ExMax-5.10-Y Actuator Assembly and 3F50 Three-Way Mixing Valve offers a robust and reliable solution for industrial applications where precise control of heating and cooling media flow is required. The combination of an ATEX-certified electric actuator and a cast iron valve with flanged connection ensures long service life and reliable operation even in demanding conditions.

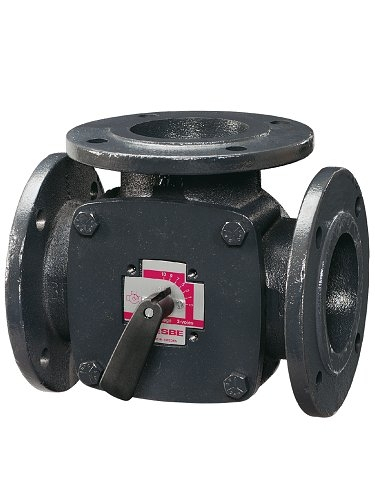

The 3F series three-way valves are designed for both mixing and diverting functions in heating and cooling systems. Thanks to their robust cast iron construction and flanged connection, they provide a reliable solution for applications with higher demands on stable flow and precise regulation.

The 3F models are made from high-quality cast iron and equipped with internal parts and seals suitable for a wide range of liquids. The valves are an ideal choice for operations where long service life, easy installation, and mechanically durable construction are required.

Suitable Media

• Liquids: water, cooling liquids, heat transfer media compatible with EPDM.

• Gases: the valve is primarily intended for liquids; use for gases only after assessing compatibility and pressure class.

The range of use is from –10 °C to +110 °C and up to pressure class PN 6.

Assembly Contents

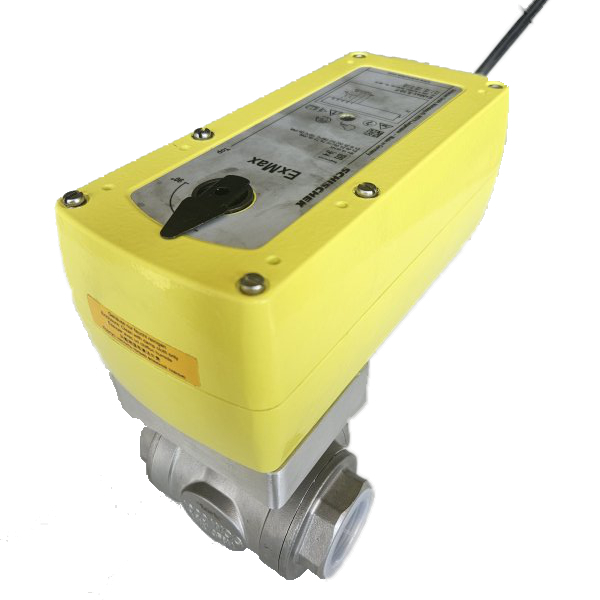

1x ExMax-5.10-Y

1x Three-Way Valve 3F50

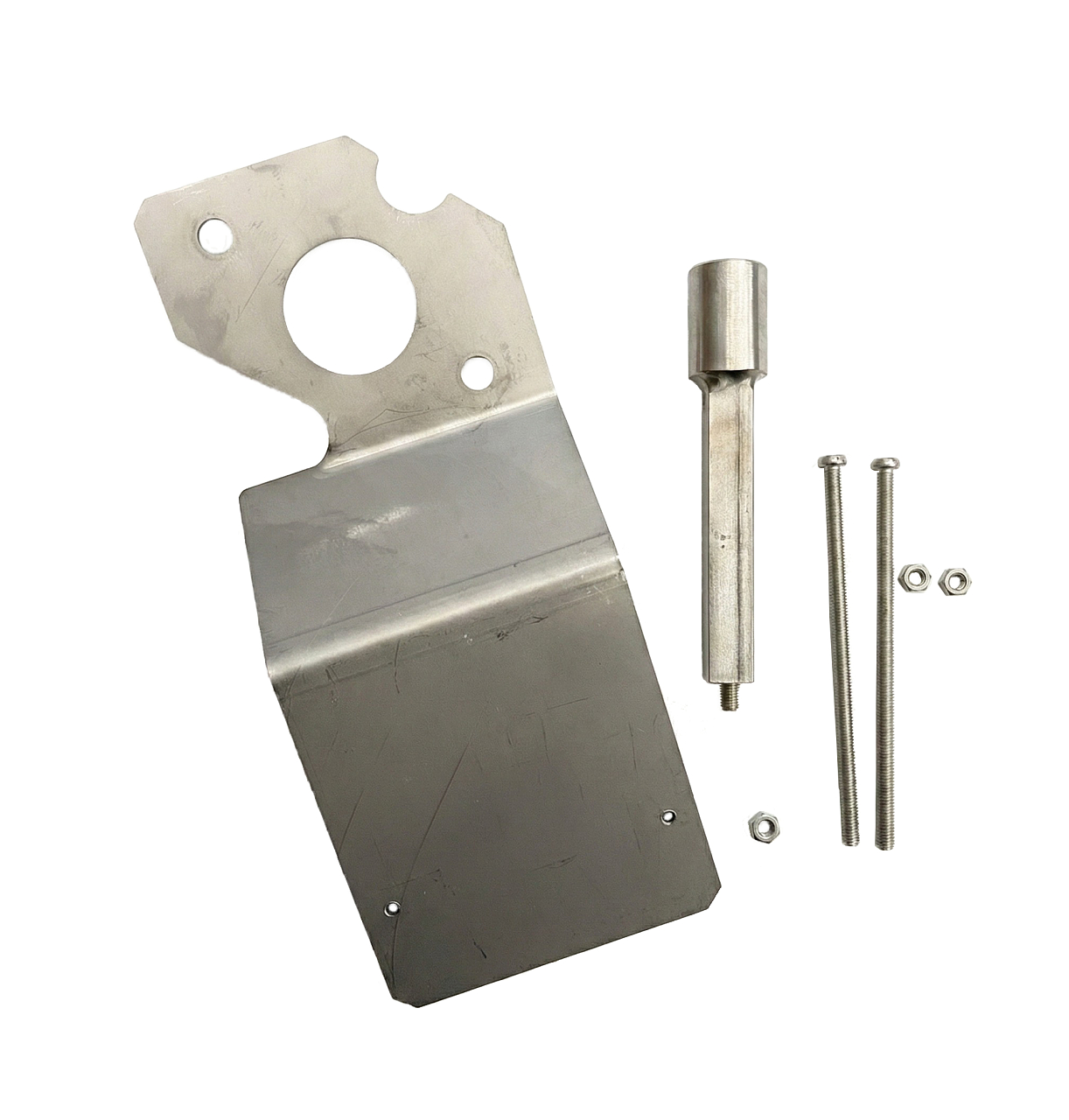

1x Adapter for connecting the actuator to the valve

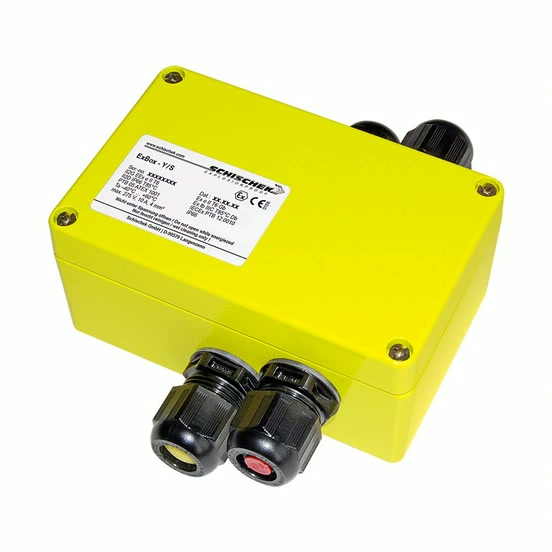

1x Exbox-Y/S (for connecting cables in Ex environments)

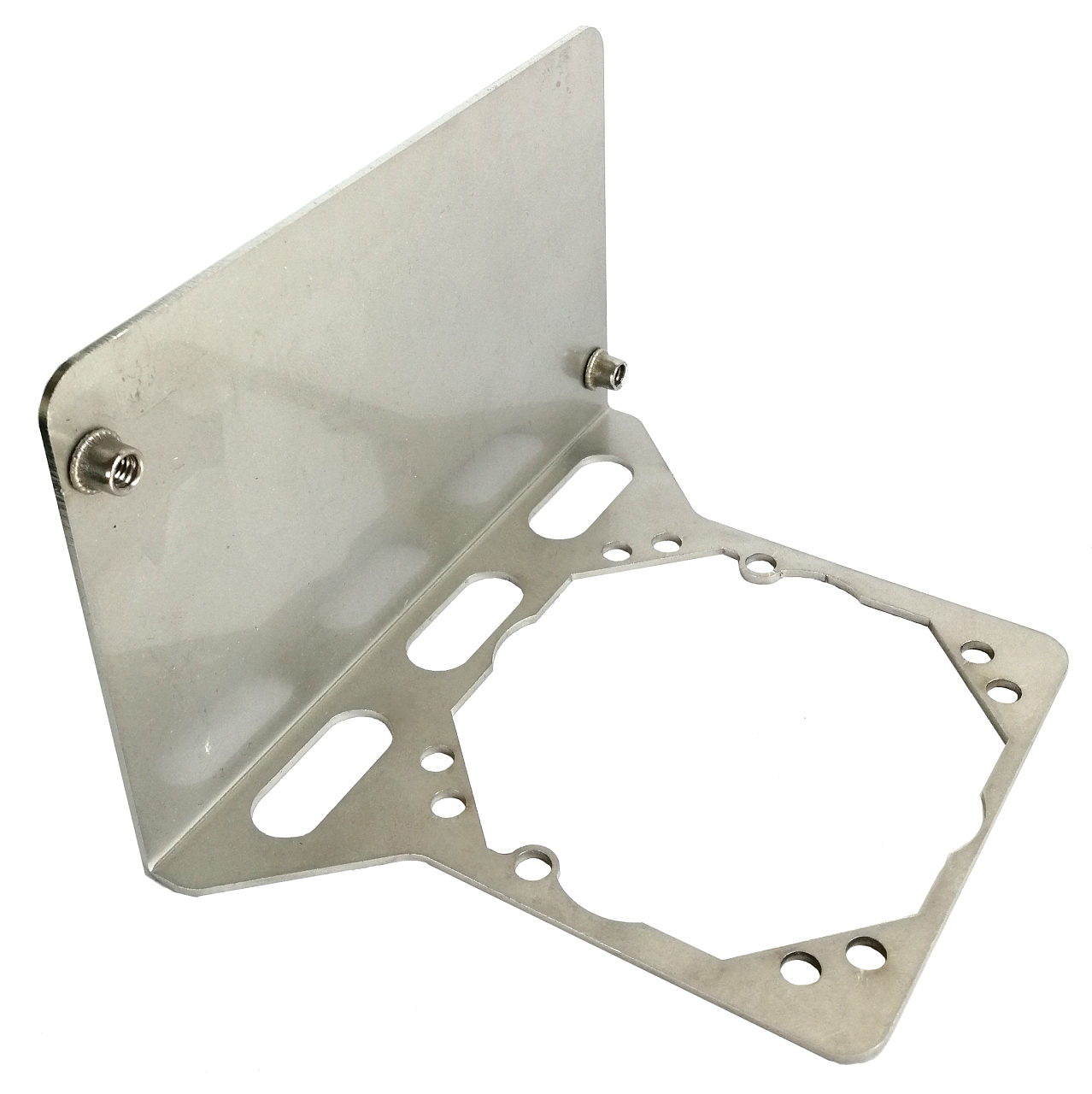

1x MKK-S (for easy mounting of the Exbox on the ExMax)
