Schischek ExReg-V Air Flow Controller with 0-1000 Pa Measurement (054.3150)

Schischek ExReg-V Air Flow Controller with 0-1000 Pa Measurement (054.3150)

Schischek
  • Product code: 054.3150
  • Manufacturer code: 054.3150
  • Warranty: 2 years

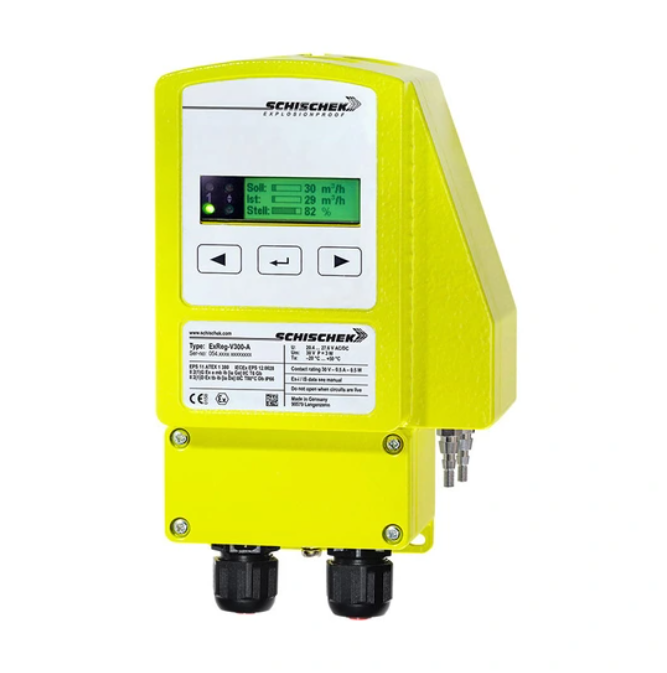

The ExReg-V1000-A is an air flow controller 0-1000 Pa designed for use in explosive environments (zones 1, 2, 21, and 22) for controlling air flow in HVAC systems (CAV/VAV). More information

  • Availability

    Out of stock - can be requested

  • Out of stock
Price excluding VAT € 2 309,19
Price with VAT 21 % € 2 794,12
+

Parameters and catalogs

Weight 0.00 kg

ExReg-V1000-A is a 0-1000 Pa airflow regulator designed for use in explosive environments (zones 1, 2, 21, and 22) for controlling airflow in HVAC systems (CAV/VAV).

Key Features:

  • On-site adaptability: The device can be configured directly in hazardous areas without the need for special tools.

  • Integrated PID controller: Ensures precise and stable airflow control.

  • Measurement range: 0–1000 Pa, with the option to set a "k-factor" for accurate measurement.

  • Alarm functions: Includes an alarm with adjustable delay for monitoring volumetric flow.

  • Durable construction: Aluminium casing with IP66 protection, optionally available in stainless steel or with a marine environment finish.

  • LCD display: Backlit display provides clear parameter readings and can be turned off as needed.

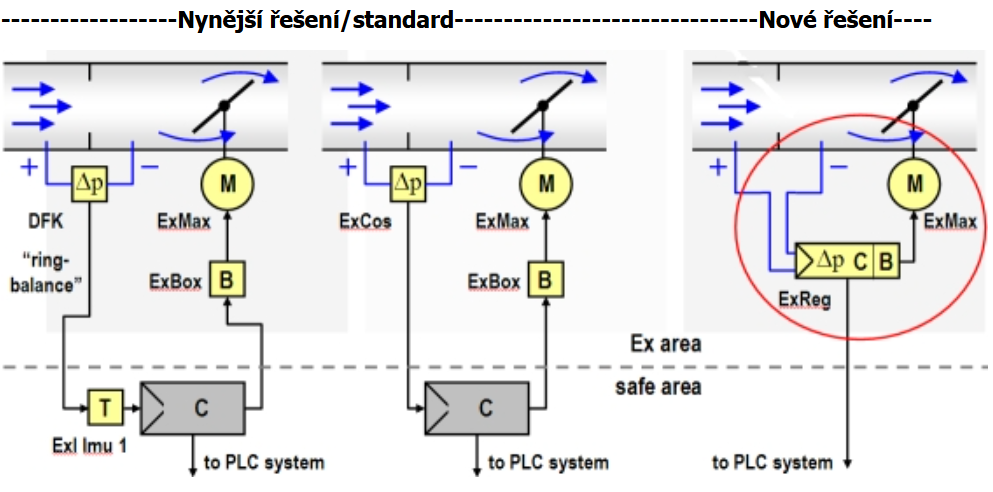

ExReg-V1000-A eliminates the need for installing safety barriers or using special cabling, simplifying installation and reducing costs. Its compact dimensions (180 × 107 × 66 mm) and integrated "Ex-e" terminal block facilitate integration into existing systems.

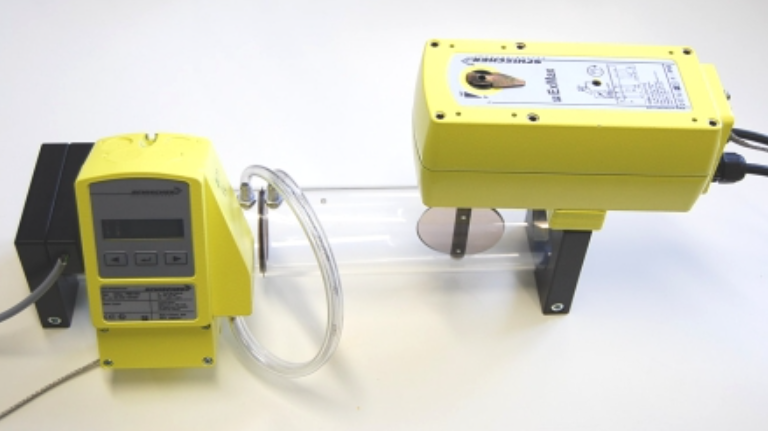

Allows direct connection and control of actuators for HVAC ExMax...-CY or ExMax...-CYF without the need for a safety terminal box ExBox.
