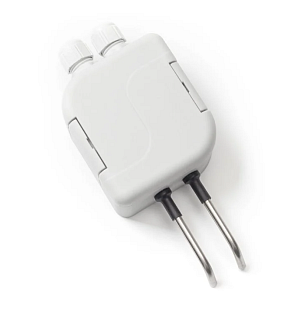

Flood sensors SHV1 are designed for effective detection of water leaks in various environments, from industrial operations to office spaces and production halls. These sensors use metal sensing electrodes and a plastic head with integrated evaluation electronics to identify changes in conductivity that indicate the presence of water. Their design includes stainless steel electrodes and a POLYAMIDE head to ensure high durability and reliability of the device.

Main features:

• Supply voltage: 24 VDC/AC
• Temperature range: 0...80 °C for the head, sensing electrodes up to 100 °C
• Output signal: open collector terminal type
• Protection class: IP 65
• Materials: head made of POLYAMIDE, electrodes made of stainless steel
• Indication: red LED for alarm state, green LED for operational state
• Switching sensitivity: alarm function active at a conductivity of liquid from 1 mS/m
• External probe cable length: 2 m

SHV1 sensors are ideal for applications where reliable water leak detection is needed to prevent potential damage, and they are designed for easy installation and long-term maintenance-free operability.
