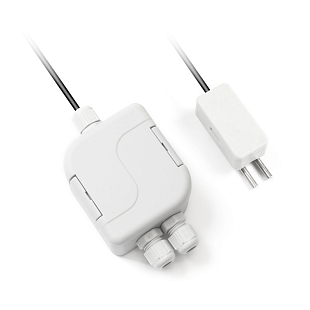

The SHV2 flood sensors are technologically advanced devices designed to detect water leaks in high-risk areas such as industrial operations, offices, or production halls. Utilizing stainless steel electrodes and evaluation electronics in a plastic head, they detect the presence of water based on its conductivity. The sensors are designed with ease of installation and user-friendliness in mind, providing immediate feedback on the system's status through LED indicators.

Main Features:

• Power supply voltage: 24 VDC/AC
• Temperature range: 0...80 °C for the head, sensing electrodes up to 100 °C
• Output signal: open collector terminal type
• Protection degree: IP 65 for the head, IP 67 for the external probe
• Materials: head made of POLYAMIDE, electrodes made of stainless steel, and external probe made of SILAMID
• Signalling: red LED for alarm state, green LED for operational state
• Switching sensitivity: alarm function active at a conductivity of the liquid from 1 mS/m
• Length of external probe cable: 2 m

The SHV2 flood sensors are the ideal solution for applications requiring reliable and accurate water leak detection, ensuring asset protection and damage prevention in various operational environments.
