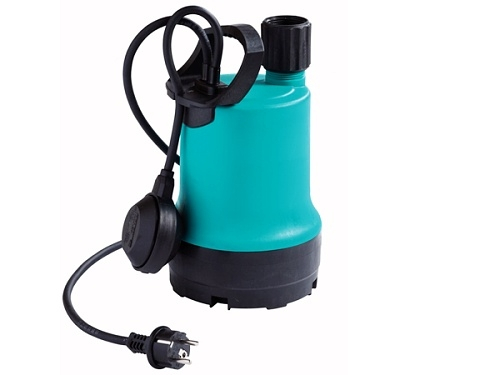

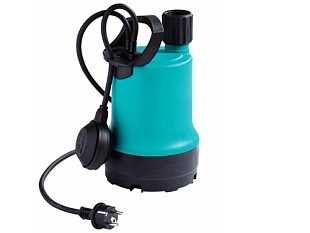

The submersible sludge pump with float Wilo TMR32/8-10M is an indispensable assistant for pumping water in domestic conditions. The pump is ready for fully automated operation. It is lightweight and easy to transport, suitable for both fixed and mobile installation. For water discharge, a pressure hose or pipe can be used (especially for permanent placement).

The motor is cooled by the surrounding medium, transferring its residual heat to the surroundings through its casing. In case of overheating, the pump switches off and restarts once it has cooled down. The hydraulics are separated from the motor by a sealing chamber filled with white oil. On the motor side, there is a shaft sealing ring, and on the hydraulic side, a mechanical seal.

The pump can suction the medium down to a minimum water level of 2 mm, thanks to a special suction basket.

Use of the Pump

Pumping clean or slightly contaminated water:

• from tanks, shafts, and excavations
• during floods and inundations
• from sumps
• for draining basement areas
• water without faeces and long-fibre components

Features and Equipment of the Pump

• float switch (factory-installed)
• 10 m connecting cable incl. "Schuko" plug
• cooling by casing flow
• thermal motor control
• IP68
• temperature of pumped medium +3...+35 °C (short-term up to 3 minutes, can pump medium up to 90 °C)
• max. submersion depth 3 m
• discharge outlet Rp 1 1/4 (internal thread DN32).

Delivery Contents

• pump
• cable with plug
• installed float switch
• threaded connection with non-return valve
• hose connection
• installation and operating instructions
