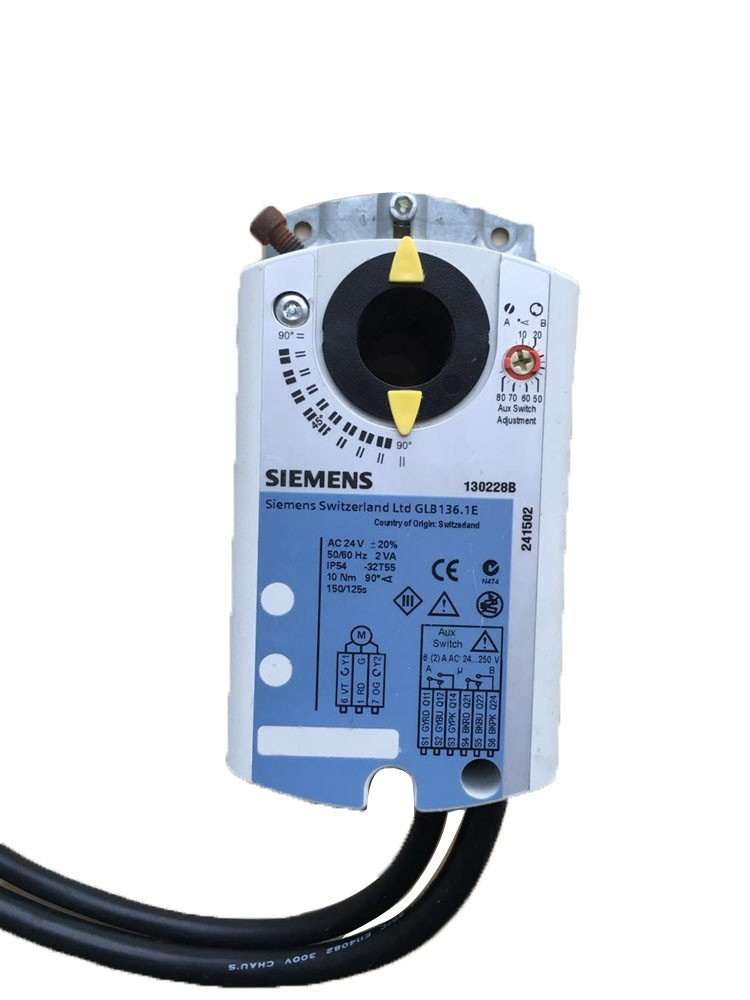

Siemens Actuator GLB 136.1E (GLB136.1E)

Siemens Actuator GLB 136.1E (GLB136.1E)

Siemens Actuator GLB 136.1E (GLB136.1E)

SIEMENS
  • Product code: GLB136.1E
  • EAN : 7612914003614
  • Manufacturer code: GLB136.1E
  • Warranty: 2 years

Electronic rotary actuator with three-point control for air dampers up to 1.5 m². More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Auxiliary contact 0...5 V
Control 3"
Damper size 1.5 m²
Emergency function 0...25 mbar
Power Supply 24 VAC
Setup time 150 s
Torque 10 Nm
Weight 0.48 kg

Datasheet download

Download PDF

Actuator for controlling air handling dampers up to 1.5 m2. The actuator is used for controlling air handling dampers in HVAC and air conditioning systems. The working range of the actuator is mechanically adjustable between 0-90 °C. The direction of rotation can be left or right (depending on the electrical control). The damper position is indicated by a position indicator located on the damper shaft collar. The actuator is equipped with two auxiliary switches.

Features:

  • power supply 24 VAC
  • 3-point control
  • torque 10Nm
  • adjustment time 150s
  • protection class IP 54
  • cable length 0.9 m
