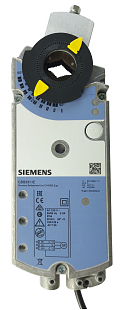

Siemens Damper Actuator GBB 131.1E, 24 V, 3-point (GBB131.1E)

Siemens Damper Actuator GBB 131.1E, 24 V, 3-point (GBB131.1E)

Siemens Damper Actuator GBB 131.1E, 24 V, 3-point (GBB131.1E)

SIEMENS
  • Product code: GBB131.1E
  • EAN : 7612914002914
  • Manufacturer code: GBB131.1E
  • Warranty: 2 years

Servo drive for controlling air dampers GBB 131.1E. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Auxiliary contact 0...5 V
Control 3"
Damper size 5 m²
Emergency function 0...25 mbar
Power Supply 24 VAC
Setup time 150 s
Torque 25 Nm
Weight 2.15 kg

Datasheet download

Download PDF

Typical use for modulating three-position or two-position controllers. Direction of rotation to the left or right (depends on electrical control).

The flap position is indicated by a position indicator located on the flap shaft collar.

Features:

  • torque 25 Nm

  • flap size 4 m2

  • angle of rotation 90 degrees

  • adjustment time 150 s

  • protection class IP54

  • dimensions 300 mm (l) x 100 mm (w) x 70.5 mm (h)

  • 3-point control

Advantages:

  • robust housing extends actuator lifespan

  • patented self-centering shaft adapter for all shaft profiles

  • universal flap position indicator

  • compact design - easy installation

  • colour-coded numbered cables
