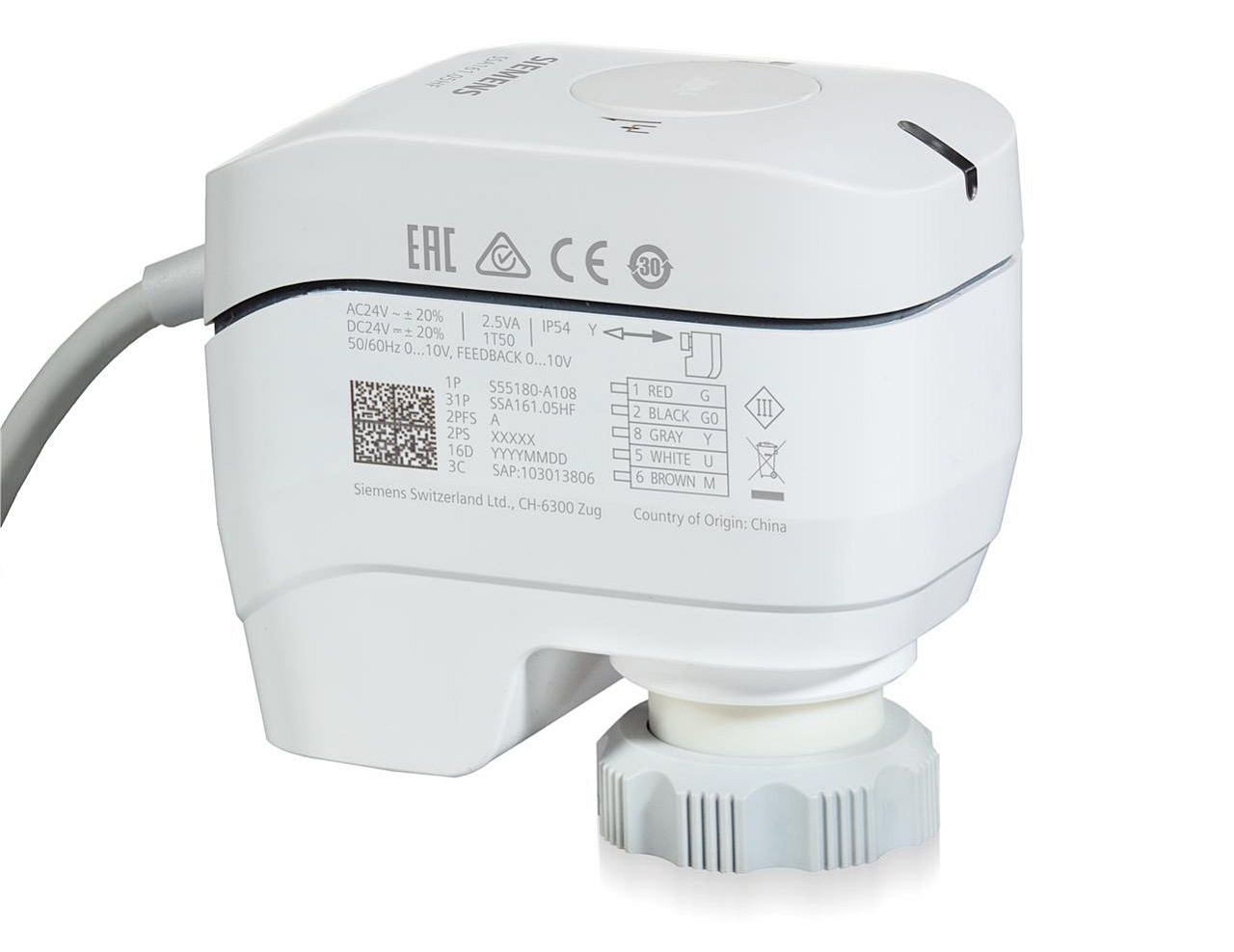

Lift actuator Siemens SSA 161.05HF for radiator heating, VAV systems, fan coil applications, and ceiling cooling. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Cable length | 1.5 m |
| Emergency function | 0...25 mbar |
| Lift | 1.2...6.5 mm |
| Power Supply | 24 VDC, 24 VAC |
| Weight | 0.31 kg |
Catalog sheet eng download
Download PDFThe SSA161.05HF electric actuator is suitable for radiator valves (VEN, VDN, VUN, M30x1.5 from other manufacturers), combined PICV valves (VPP46.., VPI46..), MiniCombi valves (VPD, VPE), and small ball valves (VD1..CLC).
It is applicable in radiator heating systems, ceiling cooling, VAV, and fan coil applications. The actuator allows for parallel connection, with up to 10 SSA161.05HF units in one system.
The actuator body features LED indication of position and movement. One diode can light up either green or red. A flashing green light indicates self-calibration or actuator operation, while a constant light means the actuator has reached the end position and will switch off after a few seconds. A red light indicates an error and lights up constantly. Alternating flashing of green and red lights indicates manual control.
Features:
